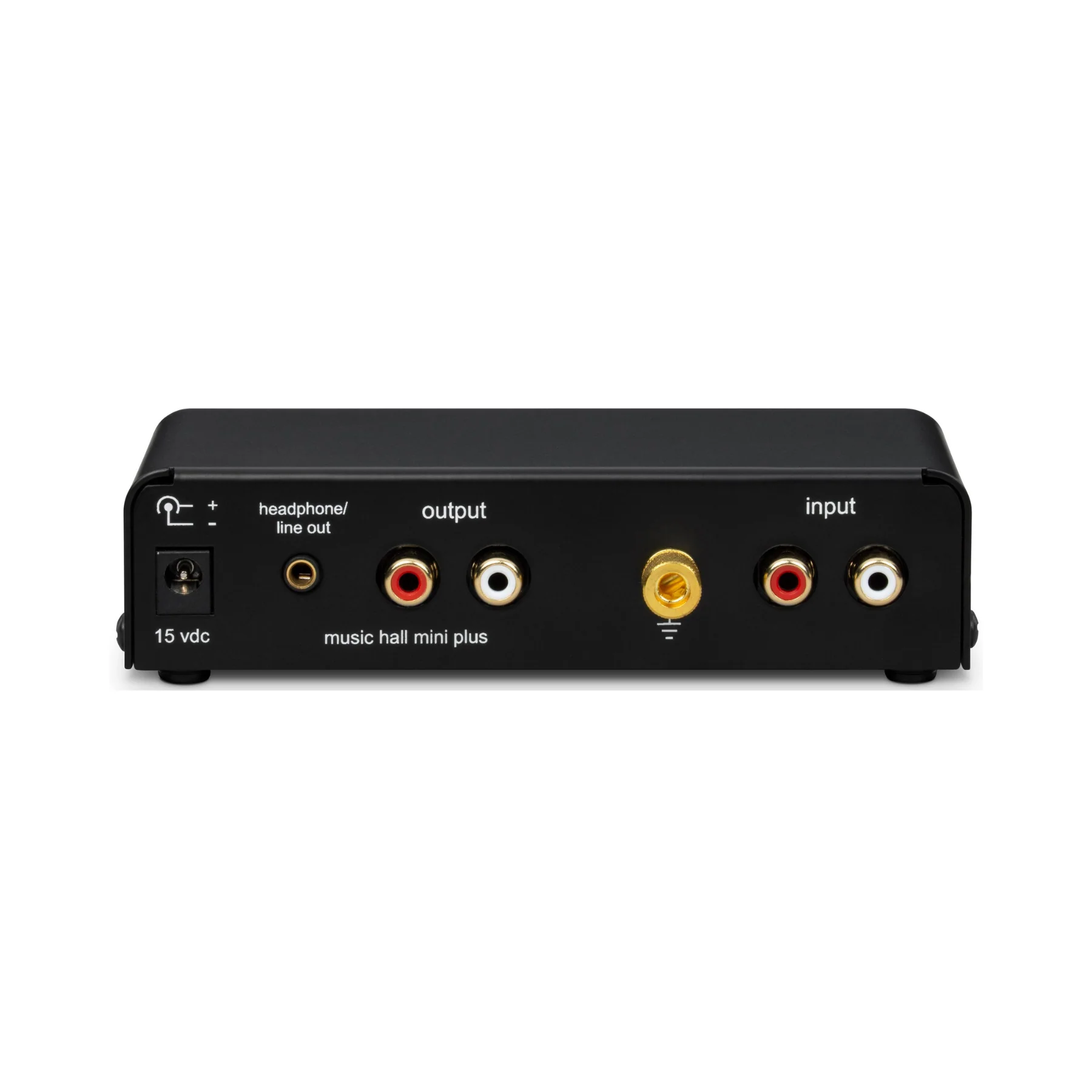

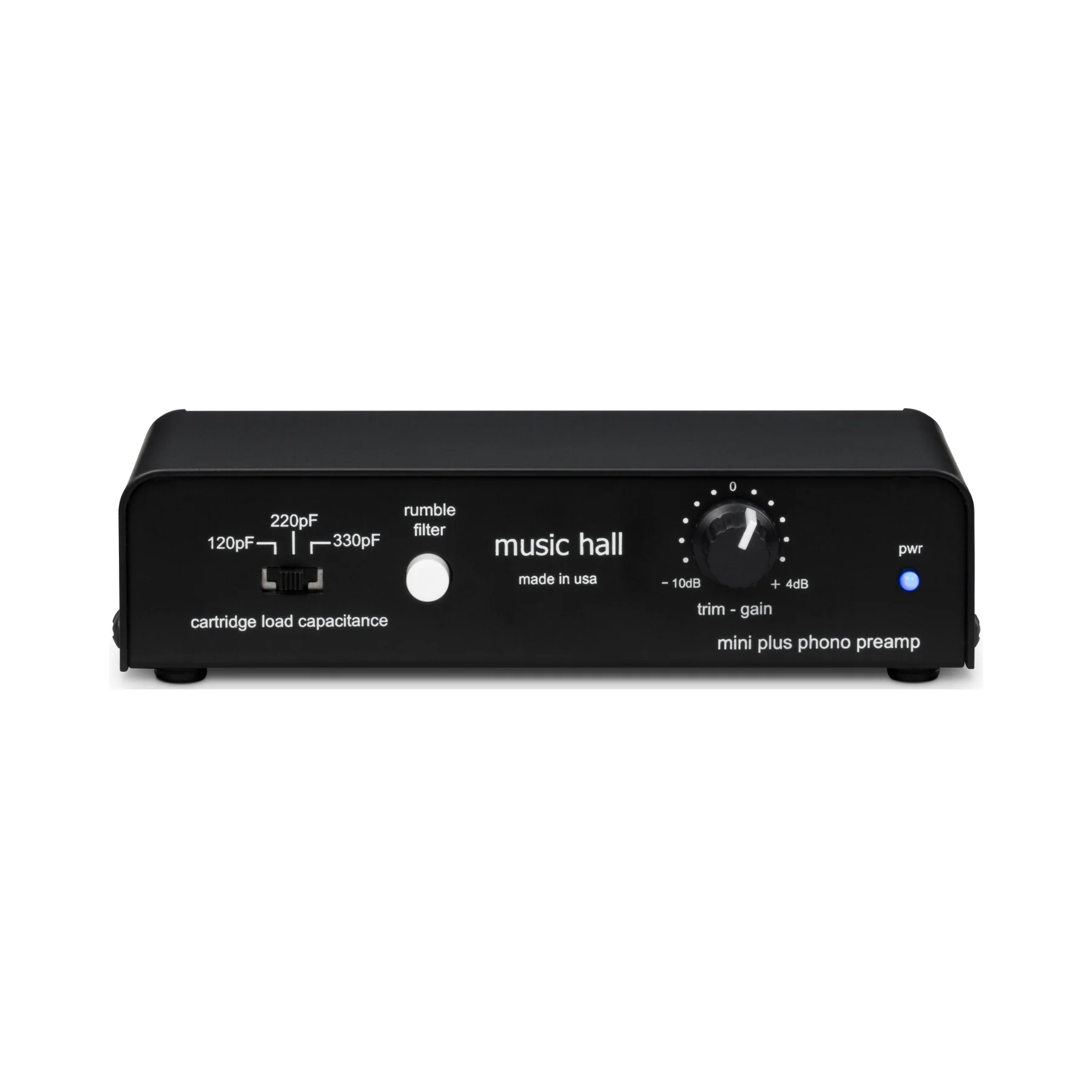

Music Hall MINI Plus Phono Preamp

The Music Hall Mini Plus Phono Preamp is a versatile, high-performance solution designed to seamlessly connect your turntable to modern audio systems. With its low-noise, high-fidelity circuitry, it delivers exceptional clarity and warmth, making it an ideal choice for moving-magnet (MM) and high-output moving-coil (MC) cartridges.

Advanced Sound Customization for Audiophiles

Adjustable Cartridge Load Capacitance– After extensive testing and refinement, we've incorporated a fine-tuning feature that lets you match the preamp to the unique characteristics of your MM cartridge, optimizing detail and tonal balance.

Trim-Gain Control – Boost or reduce output levels to perfectly match your cartridge, record, and audio system, ensuring balanced volume across your setup.

Premium Features for Exceptional Performance

Ultra-Quiet MM Phono Amp – Engineered for low distortion and noise-free operation.

Integrated High-Grade Headphone Amp – Enjoy private vinyl listening with exceptional clarity.

Gold-Plated RCA Inputs & Outputs – Ensures optimal signal transfer and minimal interference.

Energy-Efficient External Power Supply – Low noise, worldwide voltage compatibility, and efficient power consumption.

Rigid Chassis & Vibration-Damping Feet – Superior isolation or the purest signal reproduction.

The Ultimate Phono Preamp for Vinyl Lovers

The Music Hall Mini Plus isn't just a preamp—it's a serious upgrade for your turntable setup. Whether you're a dedicated vinyl enthusiast or a newcomer seeking top-tier sound quality, the Mini Plus delivers customization, precision, and a pristine listening experience.

Music Hall Mini Plus Phono Preamplifier Specifications;

Input & Output Connectors: RCA, 1/8” TRS stereo

Gain: 41.51 dB gain @ 1kHz at “0” setting, 31.64 dB gain @ “-10” setting, 45.66 dB gain @ “+4” setting

Input Impedance: 47k Ohms

Output Impedance: 32 Ohms headphone, 470 Ohms RCA

Frequency Response: 3 Hz to 36 kHz

Equalization: RIAA +/- 1 dB, 14 Hz to 23 kHz

Rumble Filter: 20Hz

THD: .005% @ 1kHz

Dimensions: 5.5” x 3.5” x 1.25”

Weight: 2 lbs.

Warranty: 1 year
