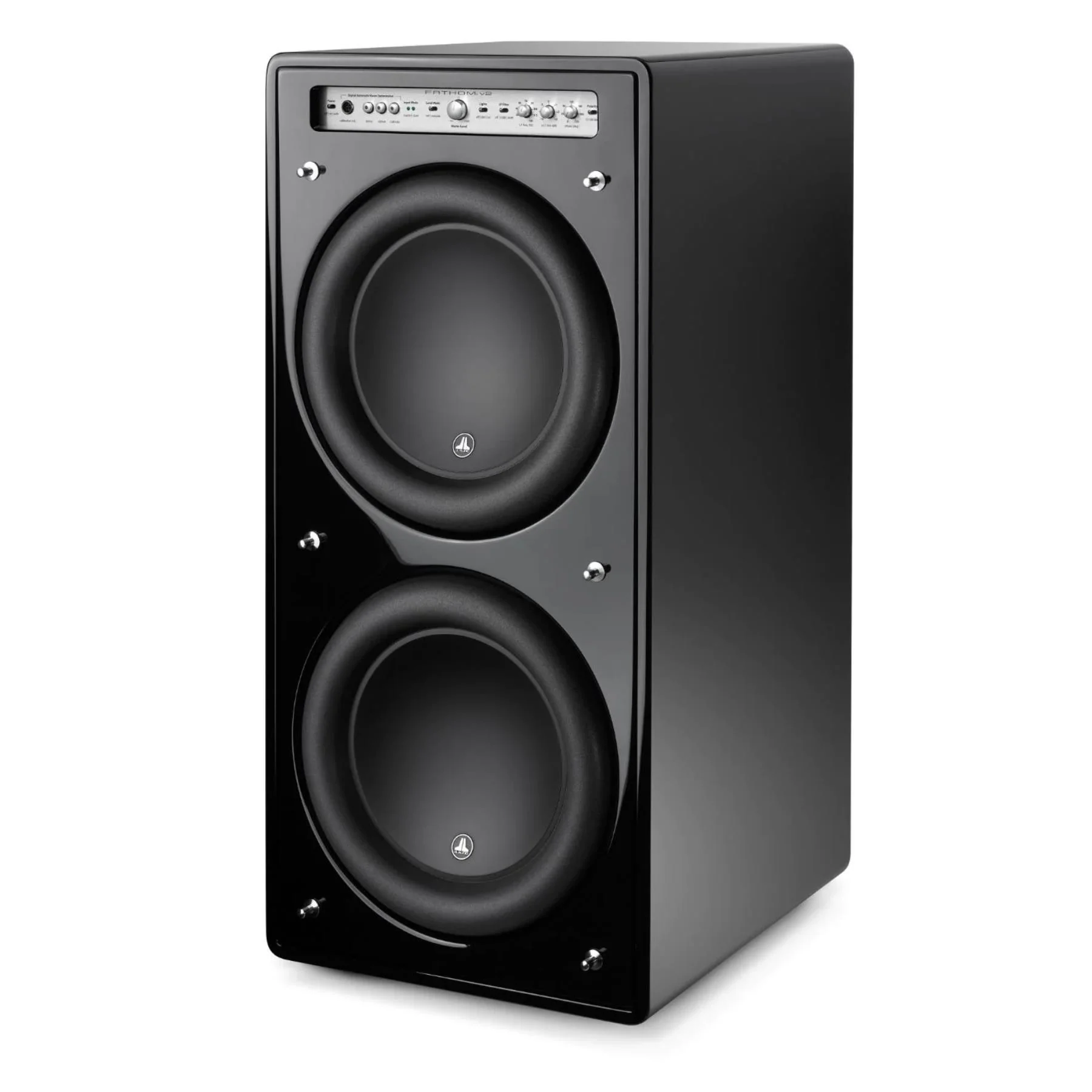

JL Audio Fathom f212v2 Dual 12-inch Powered Subwoofer - Gloss Black
JL Audio Fathom f212v2 Dual 12-inch Powered Subwoofer - Gloss Black
Elevate your audio experience with the JL Audio Fathom f212v2 Dual 12-inch Powered Subwoofer in sleek Gloss Black finish. Designed for larger spaces, this subwoofer delivers unparalleled performance with its dual ultra-long throw W7 12-inch drivers and robust 3600-watt amplifier.
Immerse yourself in the full spectrum of sound, whether it's the heart-pounding excitement of cinematic blockbusters or the nuanced details of your favorite music. With low distortion, dynamic capabilities, and deep bass extension, the f212v2 reproduces audio with exceptional clarity and precision.
Featuring the same advanced technology found in JL Audio's flagship Gotham®, the f212v2 boasts a range of signal processing features for optimal customization. Easily adjust the low-pass filter, phase, polarity, and utilize the Digital Automatic Room Optimization (D.A.R.O.) system for seamless integration into any listening environment.
JL Audio Fathom f212v2 Specifications:
- Enclosure Type: Sealed
- Enclosure Finish: Black Gloss
- Frequency Response (Anechoic): 20 - 97 Hz (±1.5dB), -3 dB at 19 Hz / 110 Hz, -10 dB at 15 Hz / 157 Hz
- Effective Piston Area (Sd): 168 sq in / 0.1084 sq m
- Effective Displacement: 574 cu in / 9.4 L
- Amplifier Power: 3.6 kW RMS short-term
- Power Mode(s): Off, On or Automatic (Signal-Sensing)
- Input Connections: Unbalanced RCA, Balanced Neutrik® combo XLR/TRS jacks
- Speaker/High-Level Inputs: N/A
- Level Control: Reference (fixed gain) or Variable, from full mute to +15dB over reference gain
- Filter Mode(s): Low-Pass
- Filter Slope(s): 12/24 dB/octave
- Filter Frequency Range: 30 Hz - 130 Hz
- Phase: Variable, 0 - 280 degrees
- Extreme Low Frequency (E.L.F.) Trim: Variable, -12 dB to +3 dB at 25 Hz
- Calibration Mode: Digital Automatic Room Optimization (D.A.R.O.), includes laboratory-grade microphone
- Dimensions (W x H x D): 14.92 in x 31.96 in x 20.39 in / 379 mm x 812 mm x 518 mm
- Net Weight: 224 lb / 102 kg
Upgrade your home audio setup with the JL Audio Fathom f212v2 Powered Subwoofer and immerse yourself in unparalleled sound quality.
