Kanto PDX650SG Stainless Steel Outdoor Full Motion TV Mount - Outdoor Stainless Steel Full Motion

The Kanto PDX650SG is an outdoor‑rated full‑motion TV mount built with stainless steel articulating arms to withstand coastal climates and year‑round exposure. Its low‑profile design lets your TV sit 2 inches from the wall yet extends up to 21.7 inches to reach an optimal viewing angle. Perfect for patios, decks or commercial installs, the mount supports TVs from 37 to 75 inches and up to 125 pounds.

The mount offers a generous +15°/−3° tilt and 80° swivel range for versatile positioning, while cable management channels keep wires organized. The stainless steel and galvanized components are powder‑coated and UV resistant to prevent corrosion, and the 22 inch dual‑stud wall plate fits wood studs up to 16 inches apart. UL 2442 certification ensures safety and reliability in outdoor environments.

Kanto PDX650SG Key Features

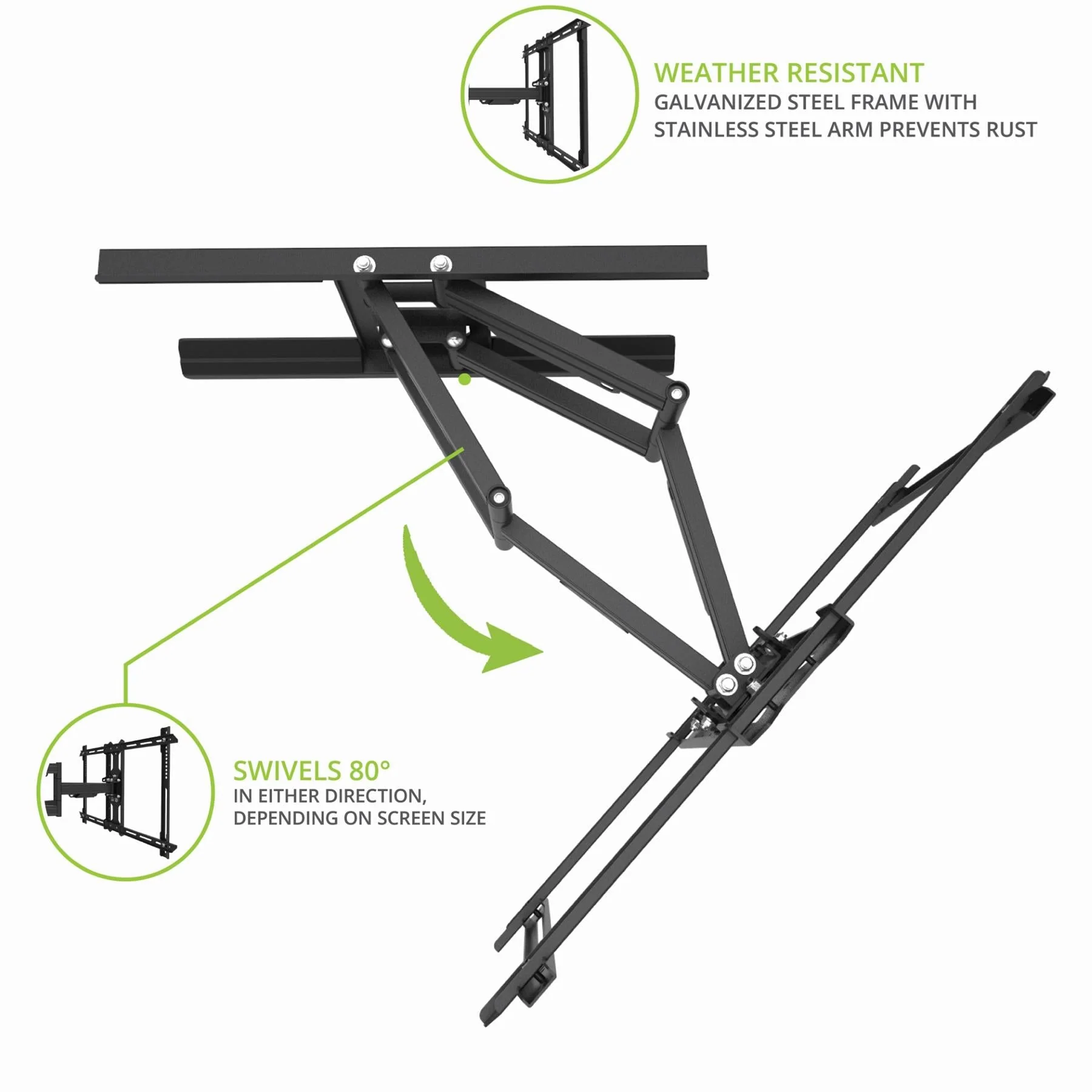

• Weatherproof stainless construction – Corrosion‑resistant stainless steel arms with galvanized, UV‑resistant powder‑coated finish withstand outdoor elements
• Low profile with full motion – Sits only 2 inches from the wall and extends 21.7 inches with 80° swivel and +15°/–3° tilt
• 125 lb weight capacity – Designed for 37–75 in TVs; dual‑articulating arms support heavy displays with smooth movement

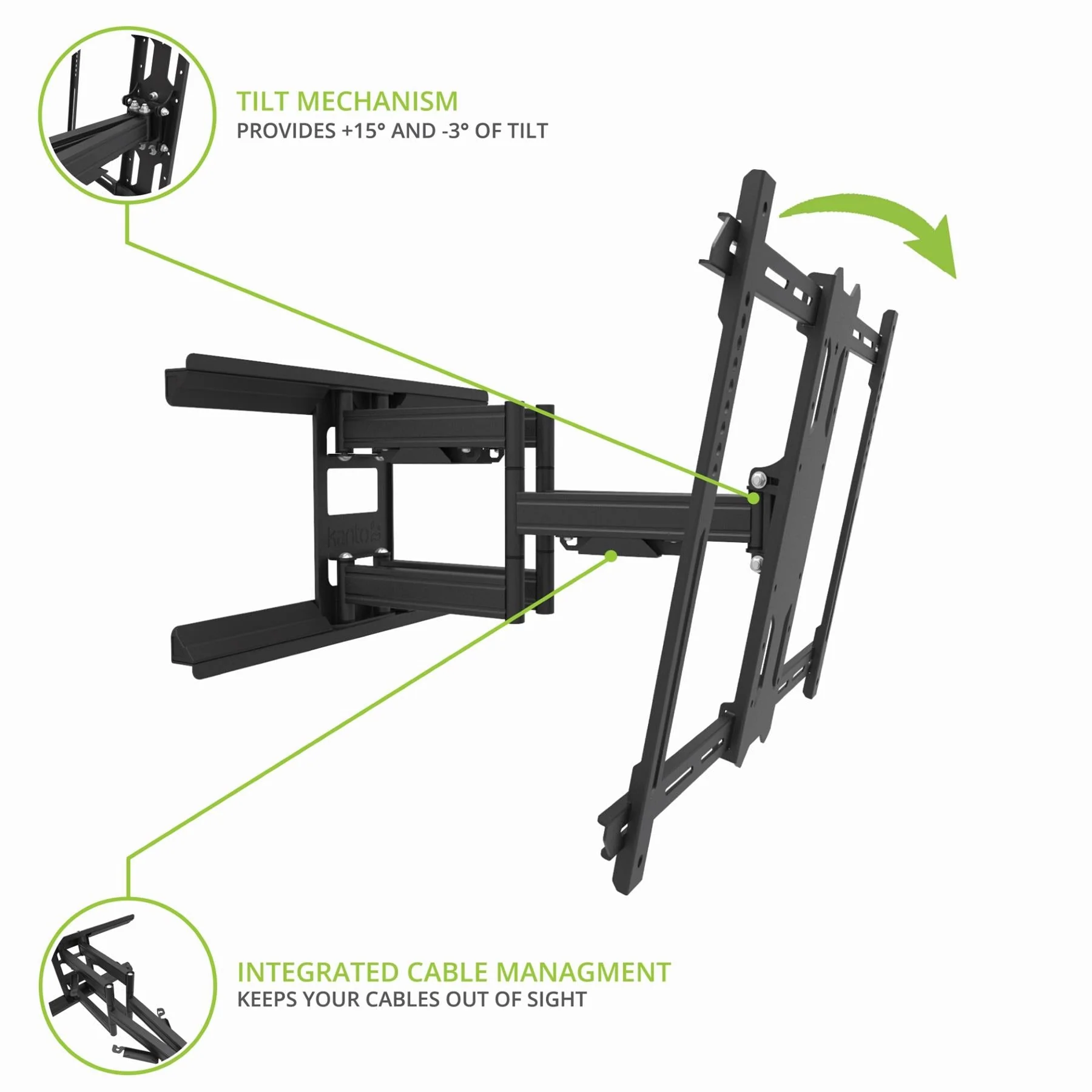

• Cable management – Integrated channels route and protect cables for a clean installation
• UL certified – Tested to UL 2442 Part 2 standards for safety and performance
• Easy installation – 22 inch wall plate fits dual studs (up to 16″ apart) and includes a complete hardware kit

Kanto PDX650SG Full Specifications

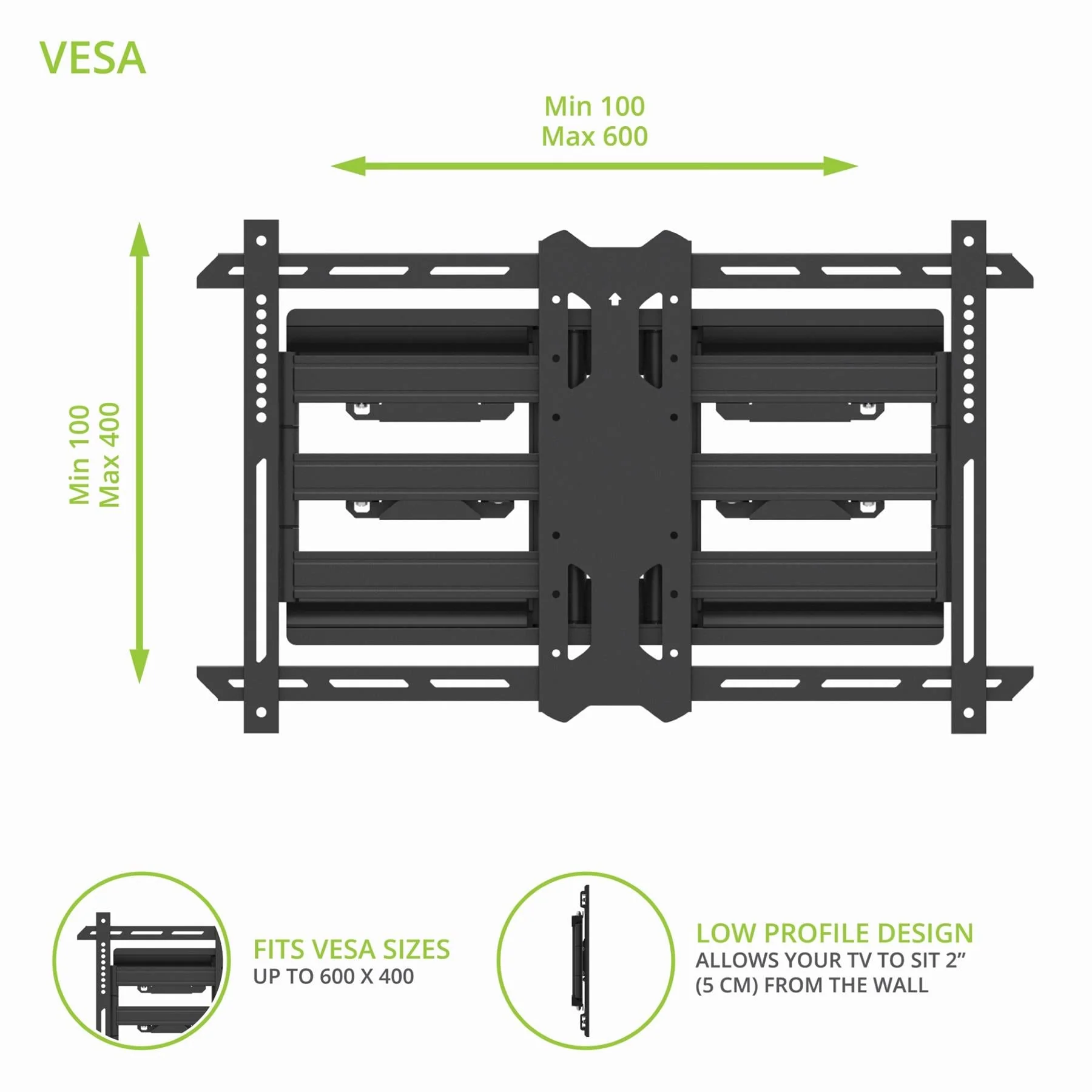

• TV size & VESA range – 37 – 75 in; compatible with 100×100 to 600×400 mm

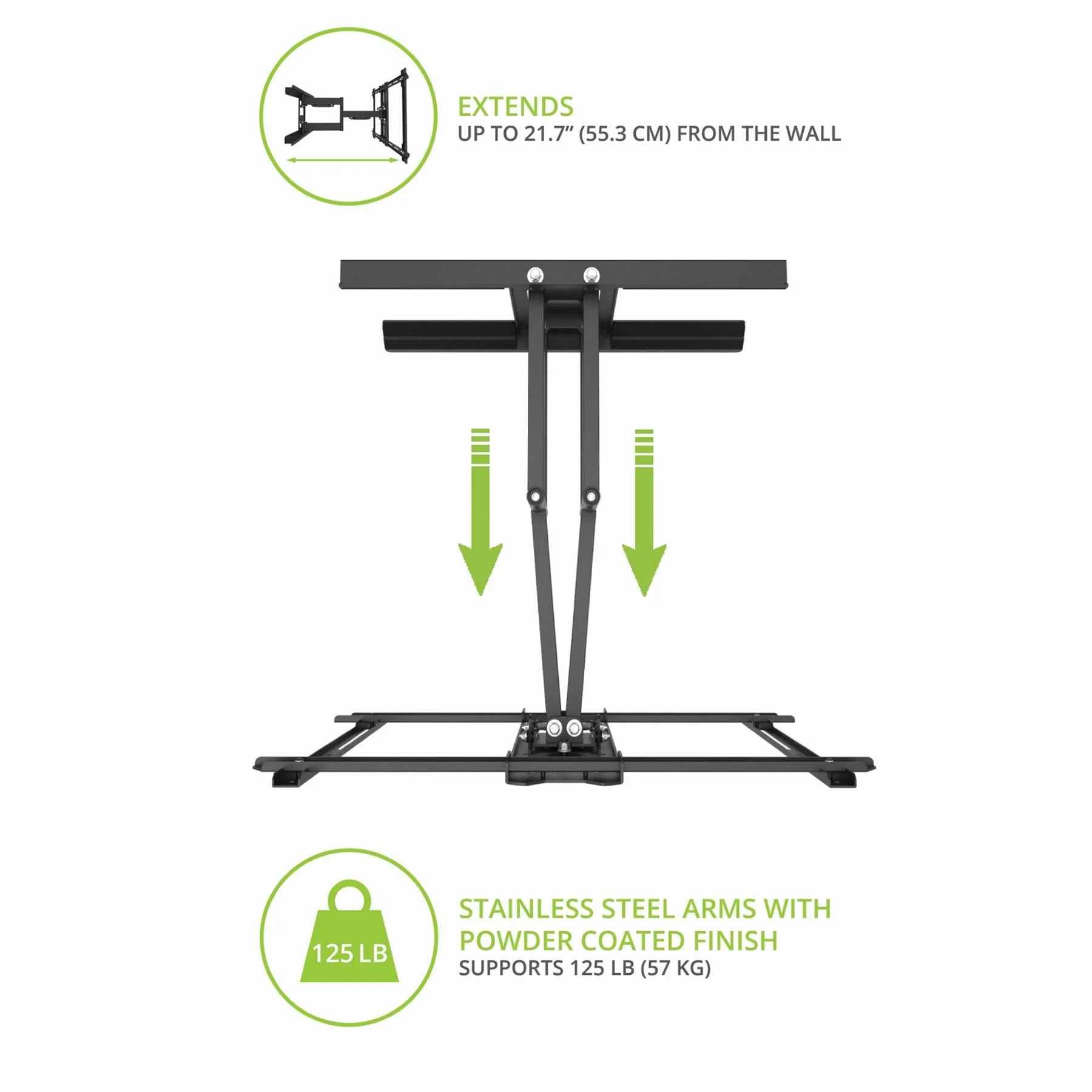

• Weight capacity & extension – Supports 125 lb (56.7 kg); extends up to 21.7 in (55 cm)
• Profile & motion – 2 in (5 cm) profile with +15° forward/−3° backward tilt and 80° swivel
• Wall plate – 22 in dual‑stud plate accommodates studs up to 16 in apart
• Construction – Stainless steel arms with galvanized and UV‑resistant powder‑coated finish; cable management channels
• Weights – Product 22.9 lb; shipping 26.4 lb; shipping dimensions 29.4×15×3.1 in; includes manual & hardware

FAQs

What TVs will the PDX650SG fit?

It supports TVs from 37 to 75 inches with VESA patterns 100×100 to 600×400.

Can I use this mount outdoors year‑round?

Yes. Stainless steel arms and galvanized, UV‑resistant powder coating resist corrosion.

How far can the mount extend?

The articulating arms extend up to 21.7 inches and retract to a 2 inch profile.

Does it tilt and swivel?

Yes. It offers +15°/−3° tilt and about 80° swivel left or right for flexible viewing.

What is the weight capacity?

It holds up to 125 pounds (56.7 kg).

How wide is the wall plate?

The 22 inch plate accommodates two studs spaced up to 16 inches.

Is the mount UL certified?

Yes. It meets UL 2442 Part 2 safety standards.

What hardware is included?

Lag bolts, anchors, washers, spacers and an installation manual are included for wood or concrete installations.
