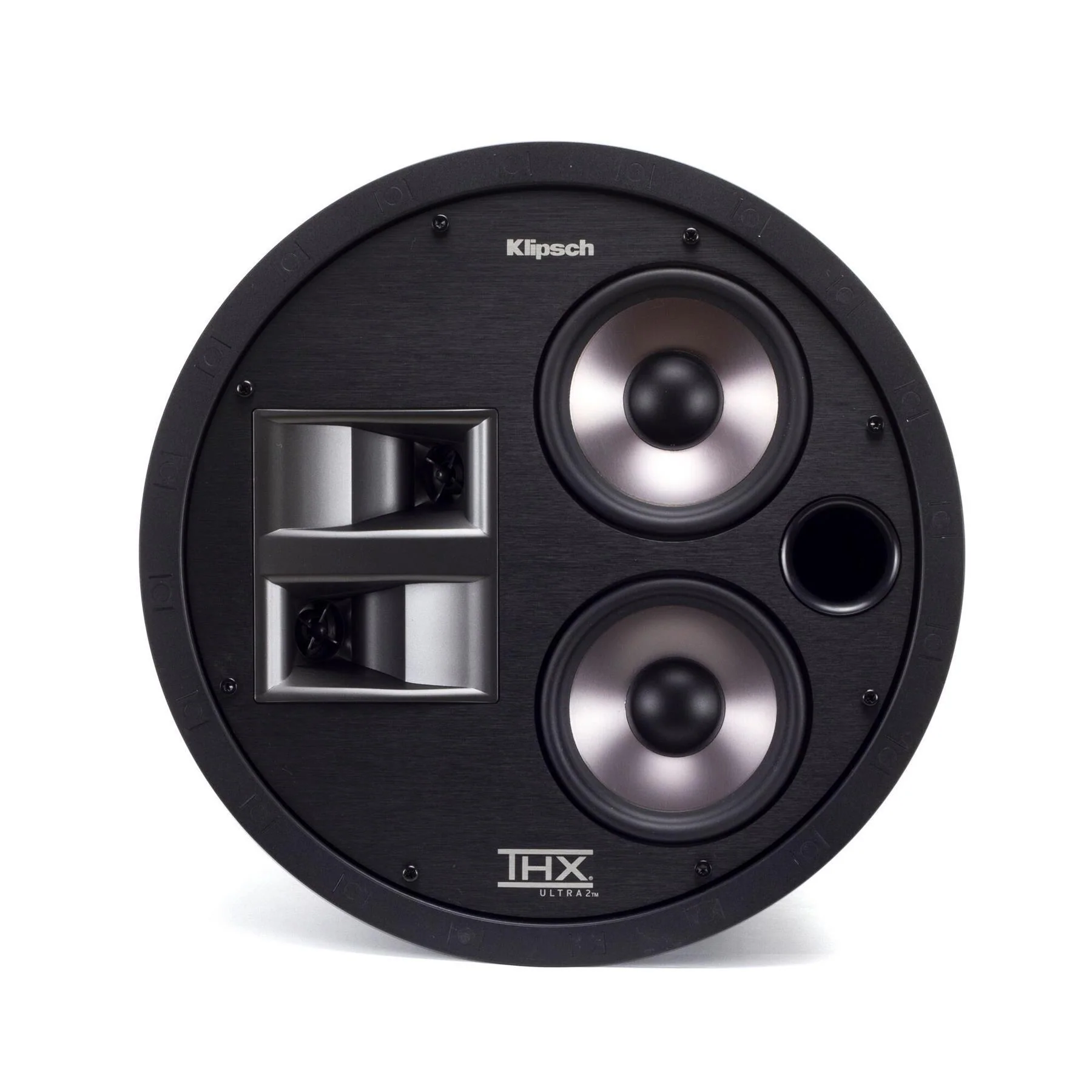

Klipsch THX-5002-S In-Ceiling Speaker

The Klipsch THX-5002-S In-Ceiling Speaker is built for cinematic surround performance in a clean, architectural install. Designed to deliver THX® Ultra2/Ultra Certified dynamics and clarity, it uses dual 5.25" Cerametallic woofers for tight, consistent bass and dual 1" titanium tweeters loaded into vertically stacked Tractrix® horns to keep effects precise and immersive. With wide, enveloping dispersion for surround channels and a low-profile, paintable edge-to-edge magnetic grille, the THX-5002-S disappears into your ceiling while your soundstage comes alive—ideal for premium home theaters and dedicated media rooms where placement flexibility and reference-level impact matter. The Klipsch THX-5002-S is part of ListenUp's Klipsch Ceiling Speakers Collection.

What It’s Good At:

• True THX® home-theater performance with high output and controlled, cinematic dynamics
• Immersive surround coverage designed to create enveloping effects and strong localization
• Crisp, detailed highs from dual 1" titanium tweeters in Tractrix® horn loading
• Punchy, consistent bass from dual 5.25" Cerametallic woofers in a tuned, bass-reflex design
• Installer-friendly reliability with purpose-built custom-install design and fitment specs

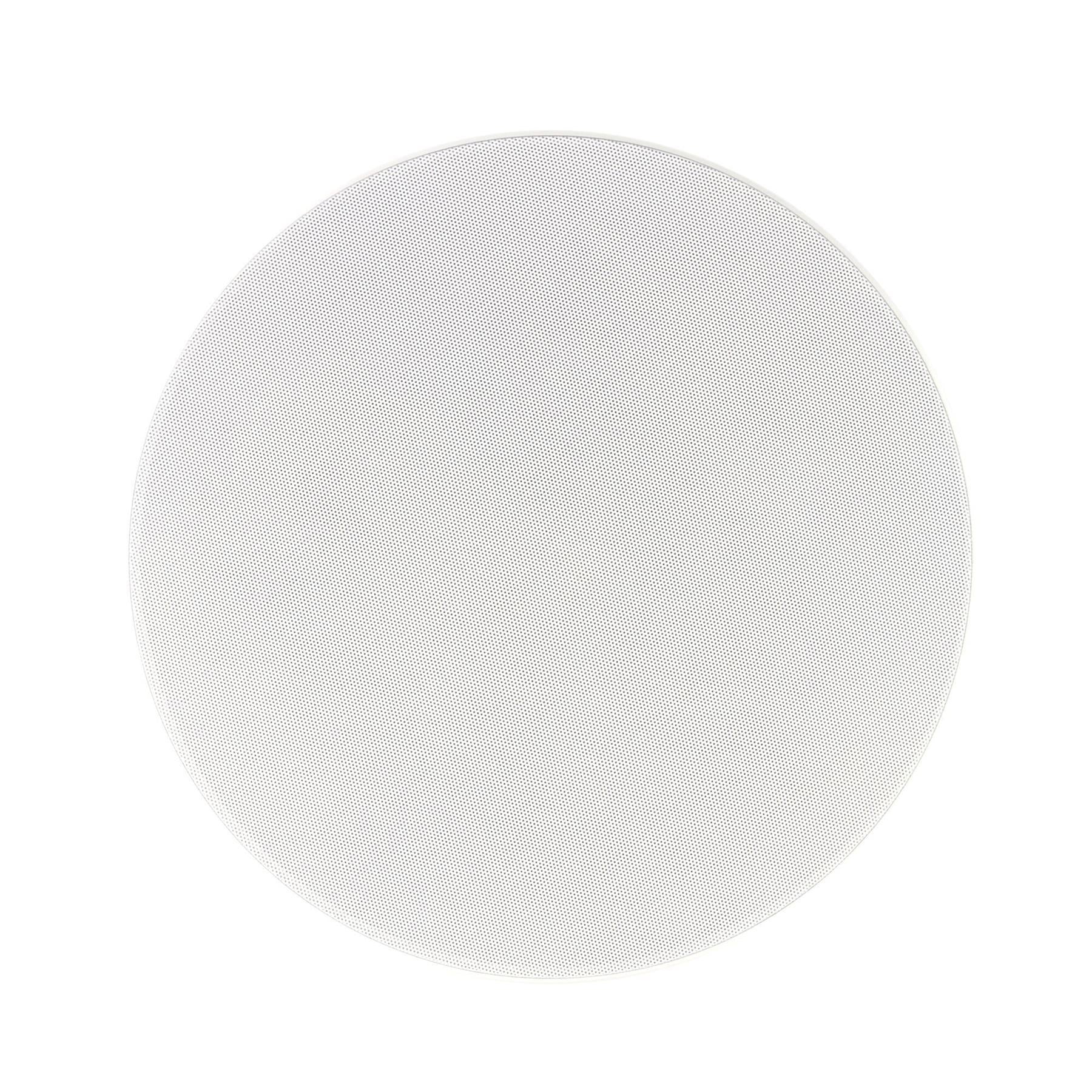

• Seamless aesthetics with an edge-to-edge, paintable magnetic grille that blends into the ceiling

Klipsch THX-5002-S Full Specifications:

• System Type: 2-way in-ceiling
• Frequency Response: 45 Hz – 20 kHz ± 3 dB
• Power Handling: 100W / 400W
• Power Handling (Cont/Peak): 100W / 400W
• Sensitivity: 93 dB
• Impedance: 8 Ohms
• Crossover Frequency: 2500 Hz
• High Frequency Driver: Two 1" titanium tweeters in vertically stacked Tractrix horns
• Low Frequency Driver: Two 5.25" Cerametallic woofers
• Enclosure Type: Bass reflex via 1.6" diameter port – front flush with ceiling
• Hole Dimensions (mm/in, HxWxD): 13.25" (33.7 cm)
• Hole Dimension: Ø13.25" (33.7 cm)
• Cutout Diameter: 13.39" (349.11 mm)
• Dimensions: 14.89" (378.21 mm)
• Dimensions: Ø15.25" (38.7 cm)
• Mounting Depth: 9.23" (234.44 mm)
• Mounting Depth: 9.5" (24.1 cm)
• Weight: 11 lbs (5.0 kg)
• Finish: White with brushed aluminum facia
• Finish: White paintable grill
• Installation Kit: IK-502-C

Klipsch THX-5002-S Q&A:

What is the THX-5002-S designed for—music, movies, or both?

It’s optimized for immersive home theater surround performance, but it also works extremely well for multichannel music where wide dispersion and clear effects placement are important.

Is this speaker THX certified?

Yes—this model is THX® Ultra2/Ultra Certified, engineered for cinema-quality playback and high-output dynamics in dedicated theater spaces.

What drivers does the THX-5002-S use?

It features dual 1" titanium tweeters paired with dual 5.25" Cerametallic woofers for detailed highs, impactful midbass, and consistent low-frequency performance.

How does it create a more immersive surround field from the ceiling?

The design emphasizes wide, room-filling dispersion to produce enveloping surround effects while still keeping key sounds and movement cues easy to place in the soundstage.

Does it have a back box, or is it open to the ceiling cavity?

It uses a bass-reflex design with a tuned port and is built for predictable performance in custom-install applications, helping deliver consistent bass response across typical ceiling installations.

Can the grille be painted to match the ceiling?

Yes—the grille is designed to be paintable so it blends cleanly into your room’s finish for a near-invisible look.

What cutout size do I need for installation?

The listed cutout diameter is 13.39", with a hole dimension of approximately Ø13.25", so it’s best to follow the provided install measurements for your specific ceiling build.

What amplifier power is appropriate for this speaker?

With 100W continuous handling (400W peak) and high sensitivity, it pairs well with quality AV receivers or separates—especially in theaters where you want clean headroom for dynamic scenes.
