McIntosh MEN220 Room Correction System
McIntosh MEN220 Room Correction System
Elevate your audio experience with the McIntosh MEN220 Room Correction System. Crafted to perfection, this system offers precision room correction, custom EQ adjustments, and advanced 2-Way Crossover capabilities, all seamlessly integrated into one user-friendly stereo component. Unleash unparalleled clarity and resolution in your audio setup with the MEN220, surpassing all other means of optimization.
McIntosh MEN220 Key Features:
- Precision Room Correction and Custom-EQ Functionality
- Advanced 2-Way Electronic Crossover for Bi-amping
- RS232 Connectivity for Full System Control and PC Link
- McIntosh Data, Power Control, and IR Inputs for Remote Control Flexibility
- Supports Single-Ended and Balanced Connections

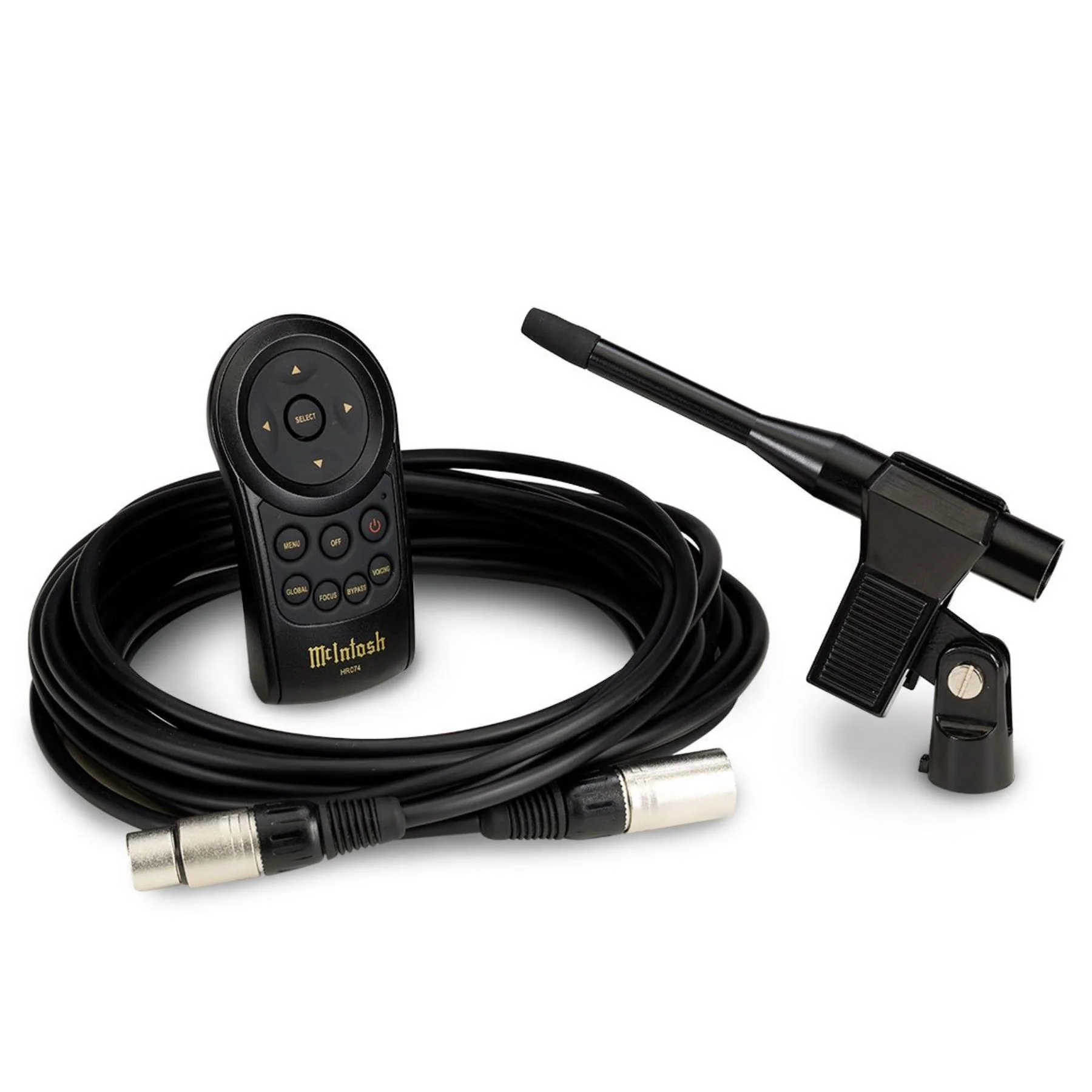

- Includes Hand-Held IR Remote Control
McIntosh MEN220 Specifications:
- Frequency Response: +0, -0.5dB from 20Hz to 20,000Hz
- Total Harmonic Distortion: 0.002% from 20Hz to 20,000Hz
- Maximum Input Voltage:
- 4.5V Unbalanced and Balanced (Preamp-Power Amp)
- 2.25V Unbalanced and Balanced (Processor Loop)
- Maximum Output Voltage:
- 4.5V Unbalanced and Balanced (Preamp-Power Amp)
- 2.25V Unbalanced and Balanced (Processor Loop)
- Signal To Noise Ratio (A-Weighted): 100dB
- Input Impedance: 10K ohms Unbalanced and Balanced
- Voltage Gain: 0dB
- Output Impedance: 50 ohms
- Crossover Filter Types, Order and Slope:
- Butterworth, 1st order, 6 dB/octave
- Butterworth, 2nd order, 12 dB/octave
- Butterworth, 4th order, 24 dB/octave
- Linkwitz-Riley, 2nd order, 12 dB/octave
- Linkwitz-Riley, 4th order, 24 dB/octave
- Linkwitz-Riley, 8th order, 48 dB/octave
Weights & Dimensions:
- Unit Dimensions (W x H x D): 17-1/2" (44.45cm) x 6" (15.24cm) x 18" (45.72cm) (including front panel, knobs, and cables)
- Unit Weight: 25.5 lbs (11.6 kg)
- Shipping Weight: 41.9 lbs (19 kg)
Experience audio perfection with the McIntosh MEN220 Room Correction System. Elevate your sound quality to unprecedented levels and indulge in every nuance of your favorite music like never before.
Original: $7,500.00
-65%$7,500.00
$2,625.00Product Information
