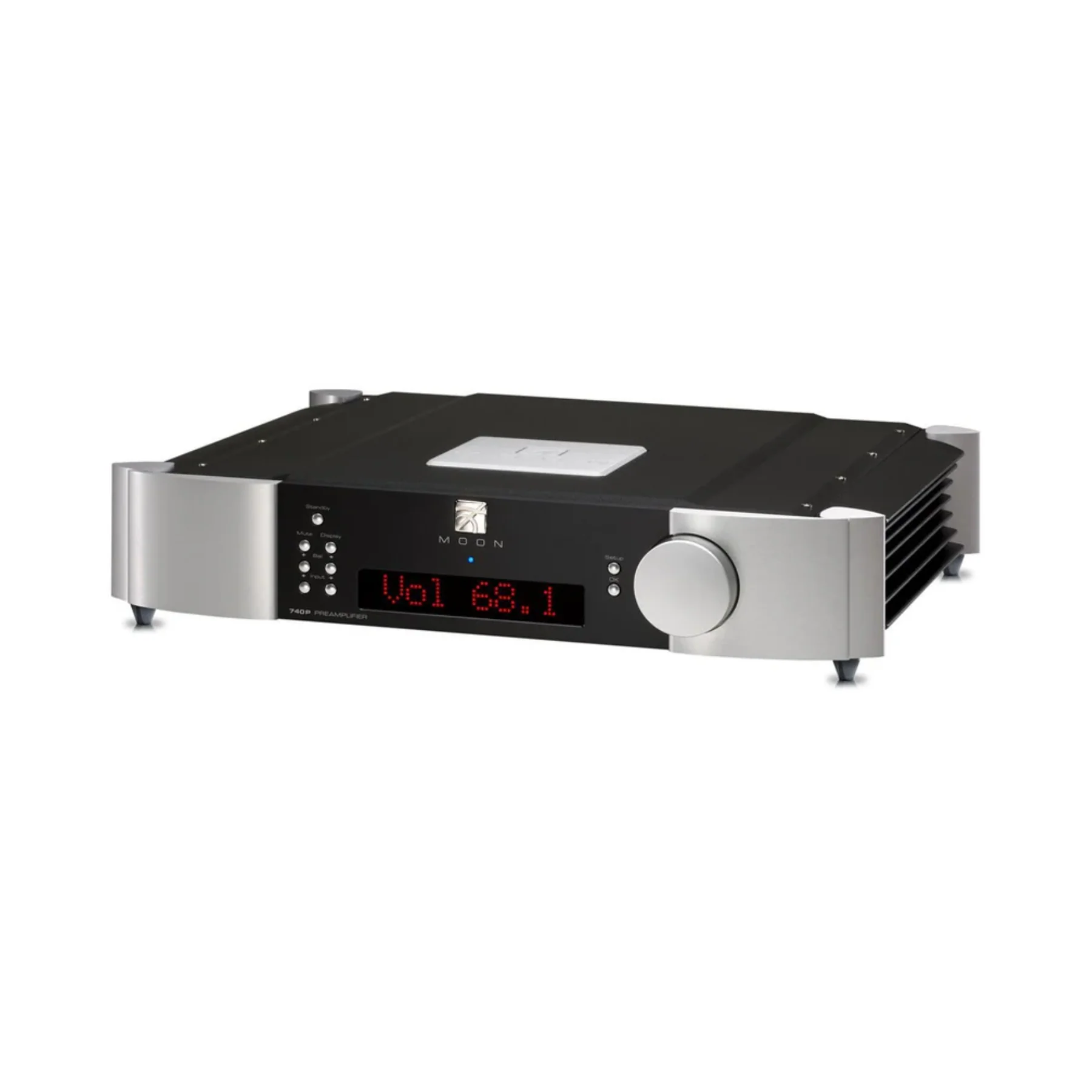

MOON 740P Stereo Preamplifier in Two Tone - Black/Silver
The Moon 740P is a $9,500 solid-state line-stage preamplifier with a dual-mono configuration and balanced differential audio circuitry.
(877) 744-1179 for Open Box with minor visible damage $5,999
Moon 740P Specifications
Configuration Fully balanced, dual-mono
Balanced inputs (XLR) 2 pairs
Single-ended inputs (RCA) 3 pairs
Input Impedance 22,000Ω
Input Sensitivity 200mV – 4,0V RMS
Balanced outputs (XLR) 1 pair
Single-ended outputs (RCA) 2 pairs (fixed and variable)
Output Impedance 50Ω
Gain Control M-eVOL2
Gain 9dB
Signal-to-noise Ratio 120dB @ full output
Frequency Response 5Hz - 100kHz +0/-0.1dB
Crosstalk @ 1kHz 116dB
Intermodulation Distortion 0.0003%
THD (20Hz - 20kHz) 0.001%
Remote Control All Aluminum Full-Function (FRM-3)
Display Type 8 character dot matrix LED
Power Consumption @ idle 20 Watts
AC Power Requirements 120V / 60Hz or 240V / 50Hz
Shipping Weight 35 lb / 16 kg
Dimensions (W x H x D, inches / cm) 18.75 x 4.0 x 16.5 / 47.6 x 10.0 x 41.9
