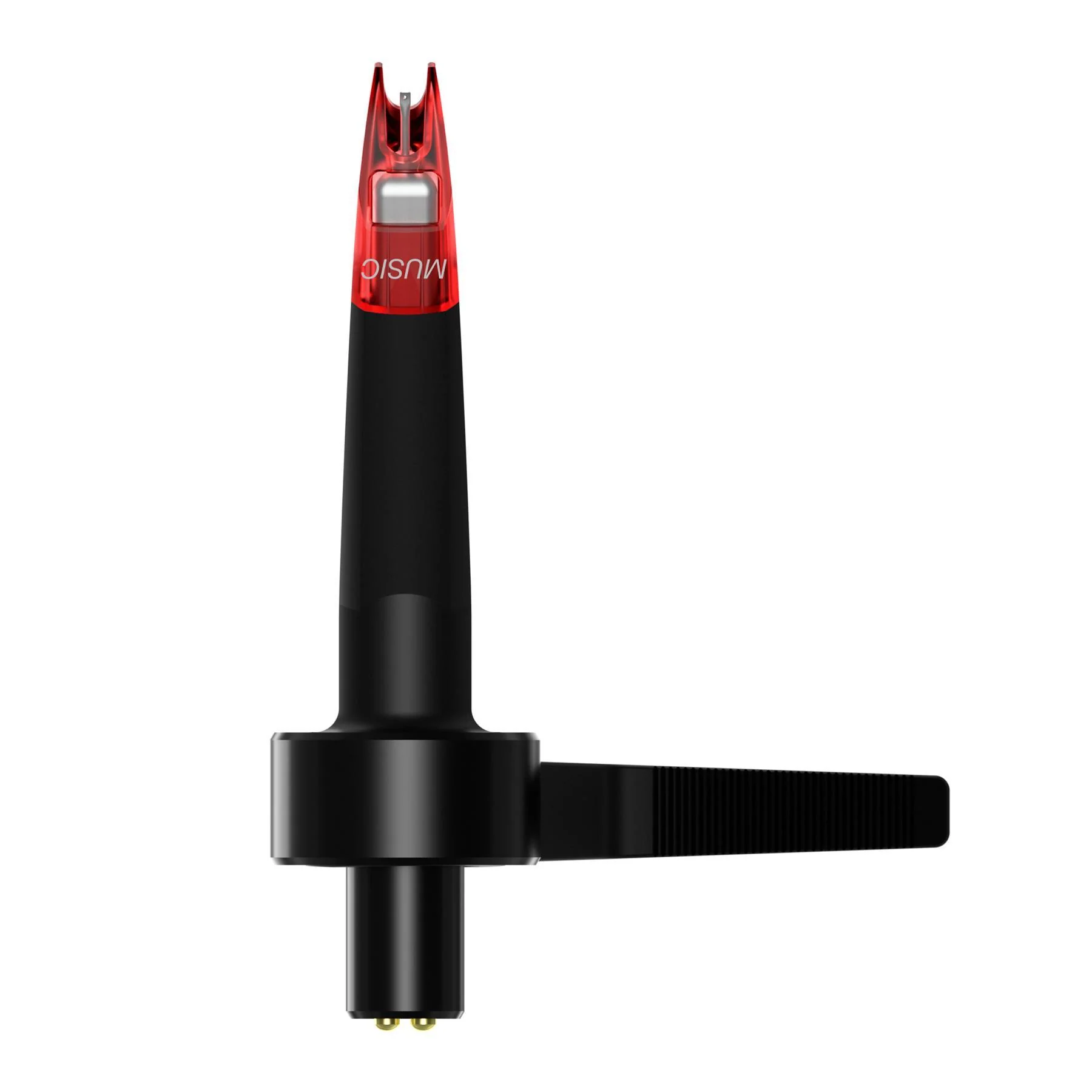

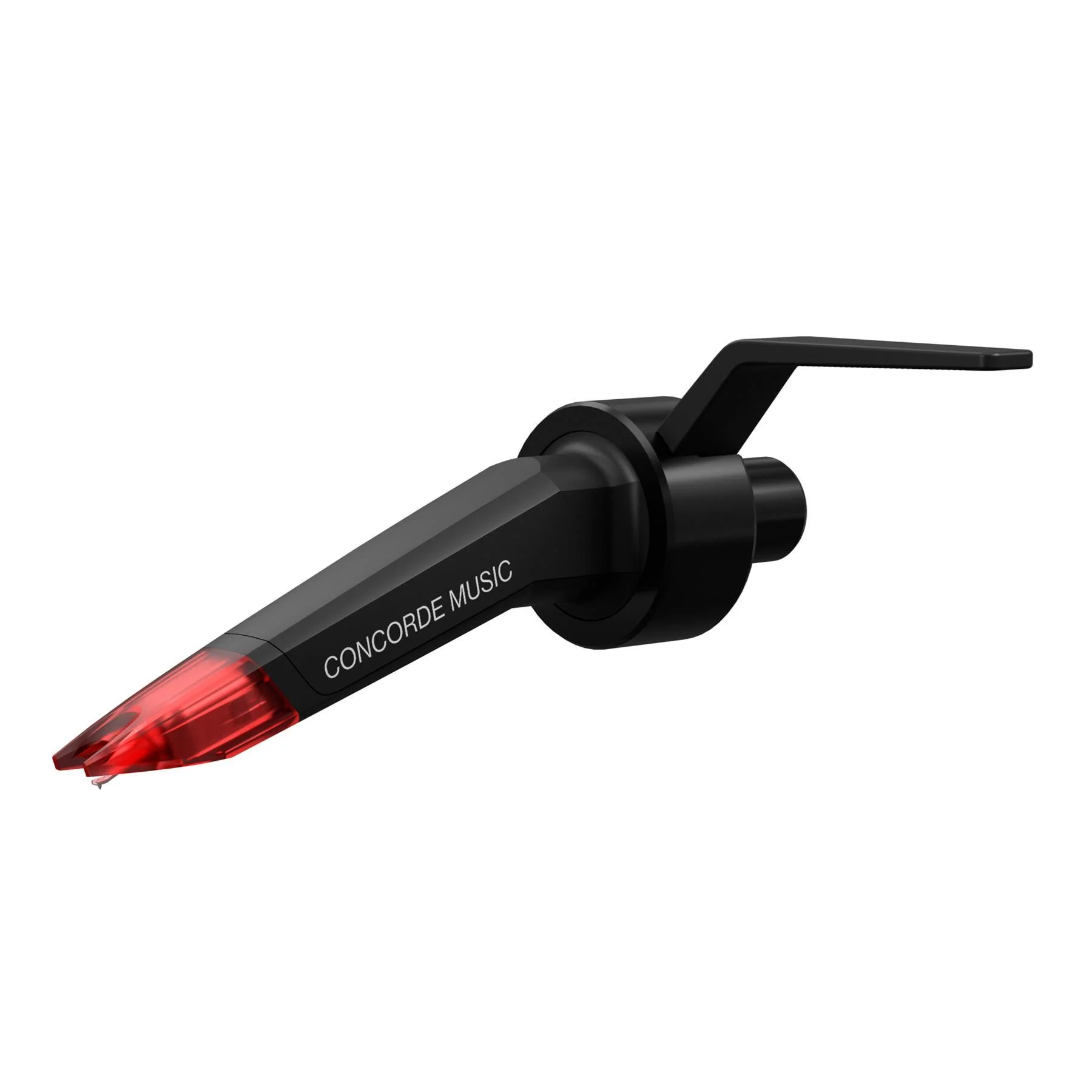

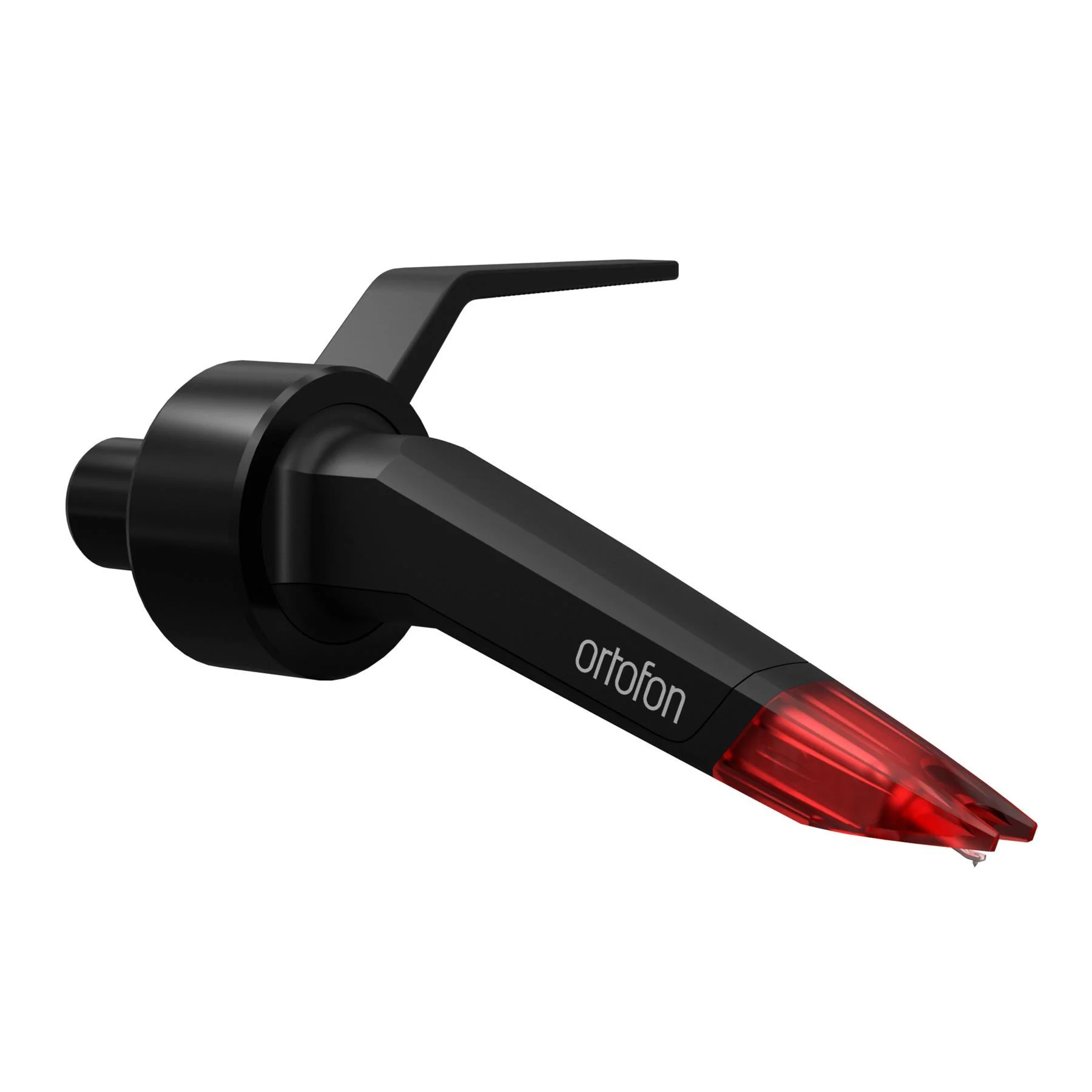

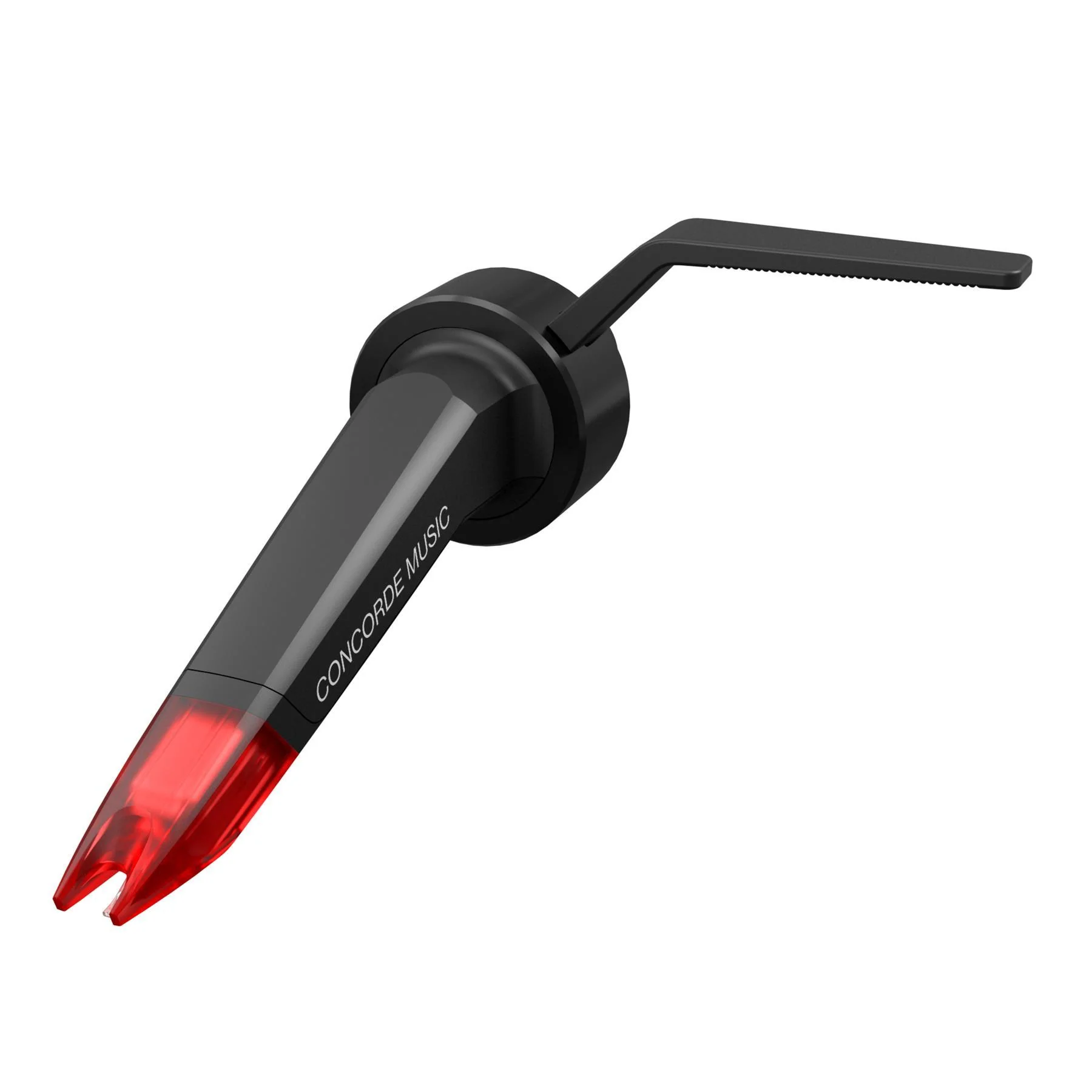

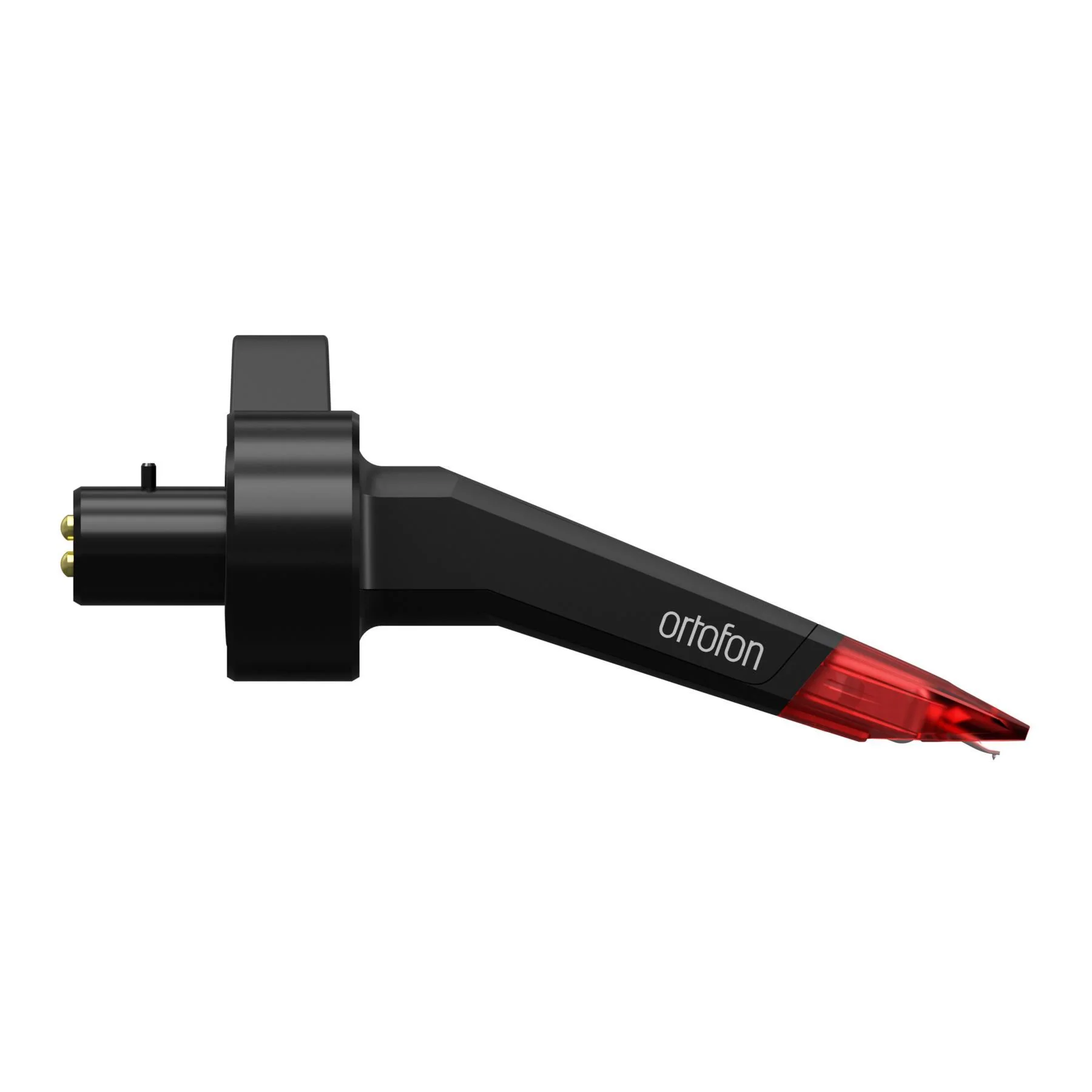

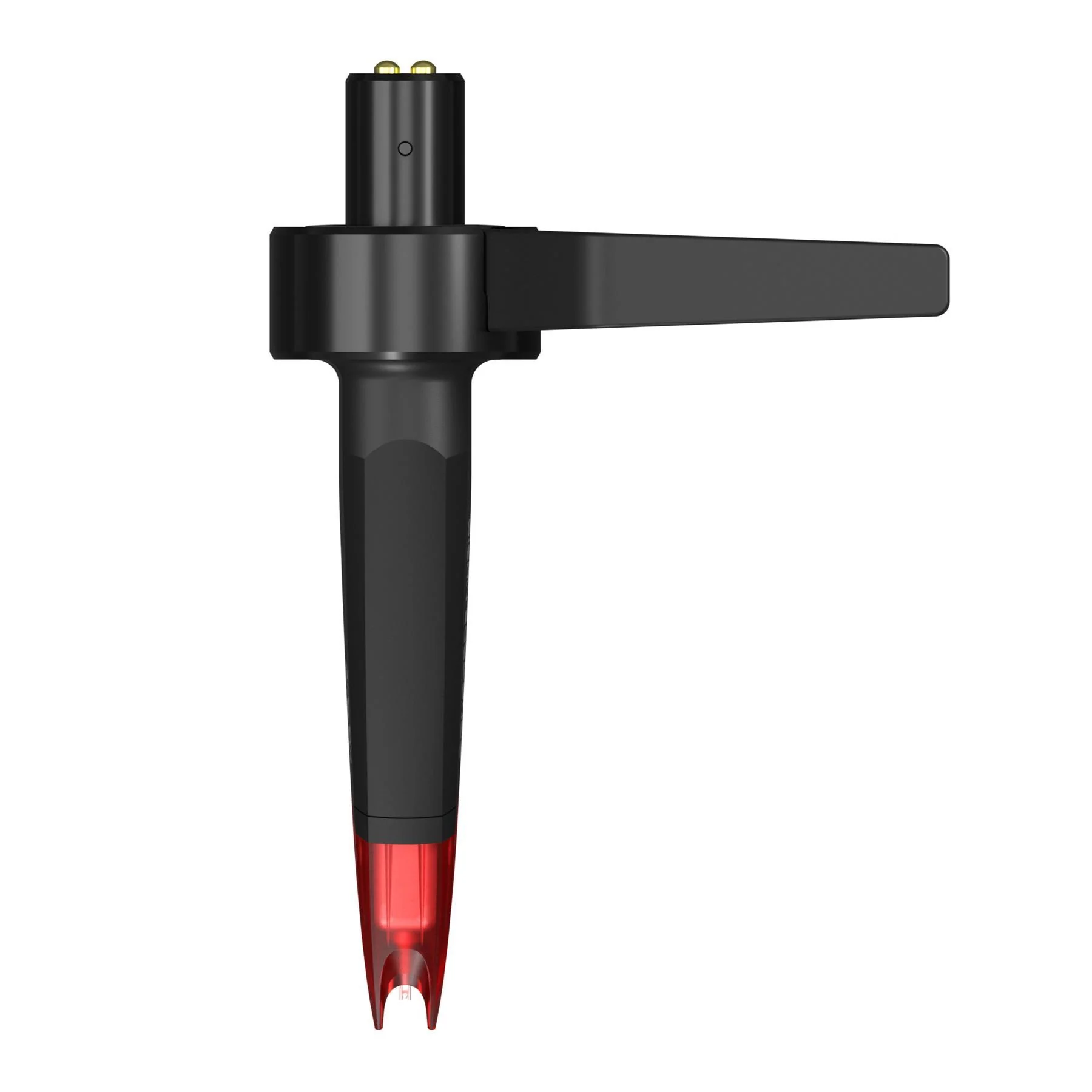

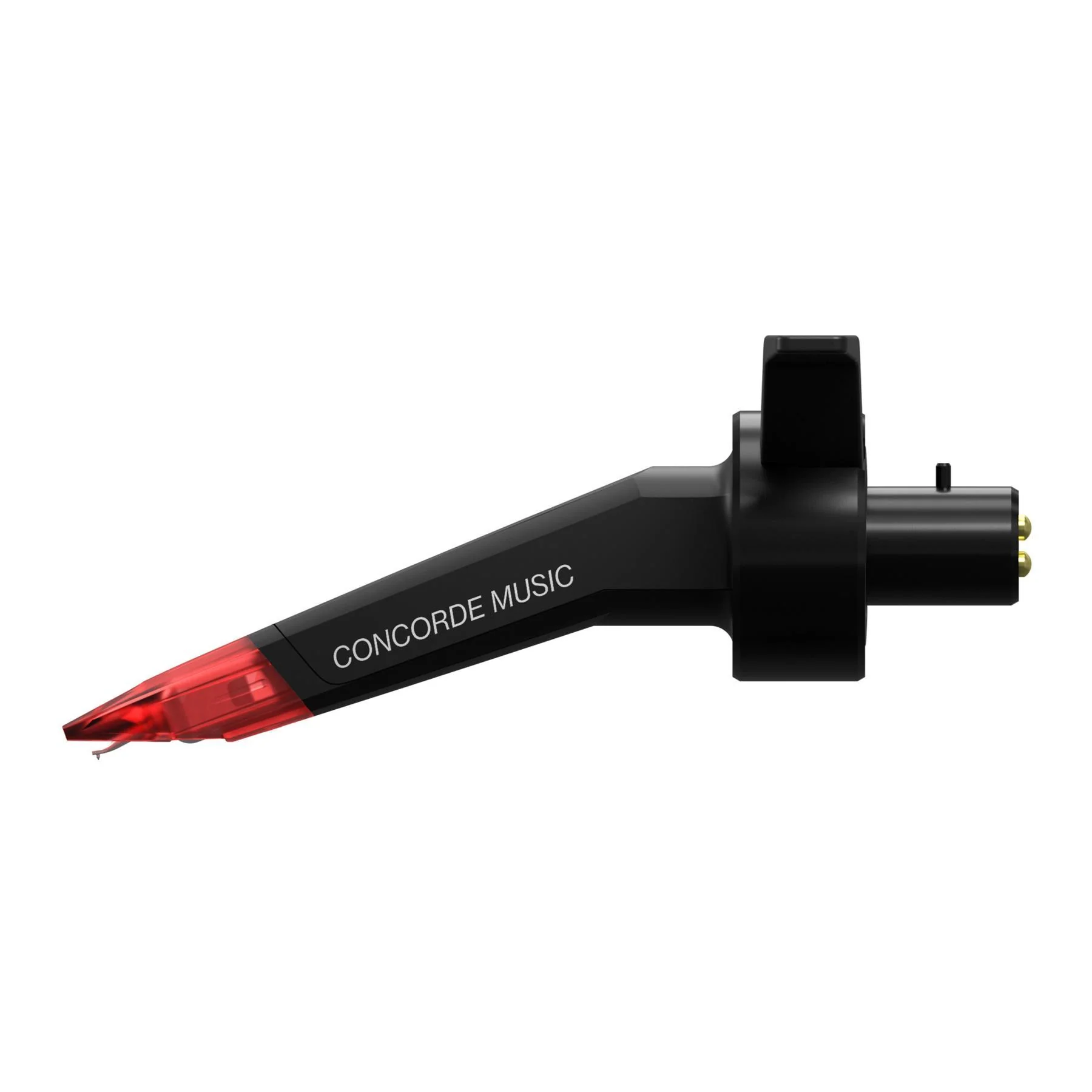

Ortofon Concorde Music Red Moving Magnet Cartridge for S-Shaped Tonearms

Unlock the full potential of your vinyl collection with the Ortofon Concorde Music Red. Crafted for audiophiles by audiophiles, this cartridge delivers a balanced and dynamic sound experience, elevating every listening session to new heights.

Ortofon Concorde Music Red Key Features:

• Elliptical diamond stylus on an Aluminum cantilever
• Upgradeable through the Concorde Music series
• Easy installation with no tools required
• Award-winning iconic design
• Premium rubber suspension for enhanced performance
• Quad-coil generating system with split pole pins

Ortofon Concorde Music Red Specifications:

• Channel balance at 1 kHz: 1.5 dB
• Output voltage at 1 kHz, 5cm/sec: 6mV
• Channel separation at 1 kHz: 22 dB
• Channel separation at 15 kHz: 15 dB
• Frequency response: 20 Hz - 20 kHz (+3 / -1 dB)
• Tracking ability at 315Hz at recommended tracking force: 80 µm
• Compliance, dynamic, lateral: 15 µm/mN
• Stylus type: Elliptical diamond on Aluminum cantilever
• Stylus tip radius: r/R 8/18 µm
• Tracking force, recommended: 1.8 g
• Tracking angle: 20°
• Internal impedance, DC resistance: 1.27 kΩ
• Cartridge color: Black/Red
• Cartridge weight: 18 g
• Recommended load resistance: 47 kΩ
• Internal inductance: 815 mH
• Recommended load capacitance: 150-300 pF

Upgrade your vinyl setup effortlessly with the Ortofon Concorde Music Red cartridge. Compatible with all S-shaped tonearms, its bayonet/SME connector ensures seamless integration. Explore the full range of Concorde Music styli for a customizable listening experience. Transform your passion for music into an immersive journey with Ortofon.

Ortofon Concorde Music Userguide
