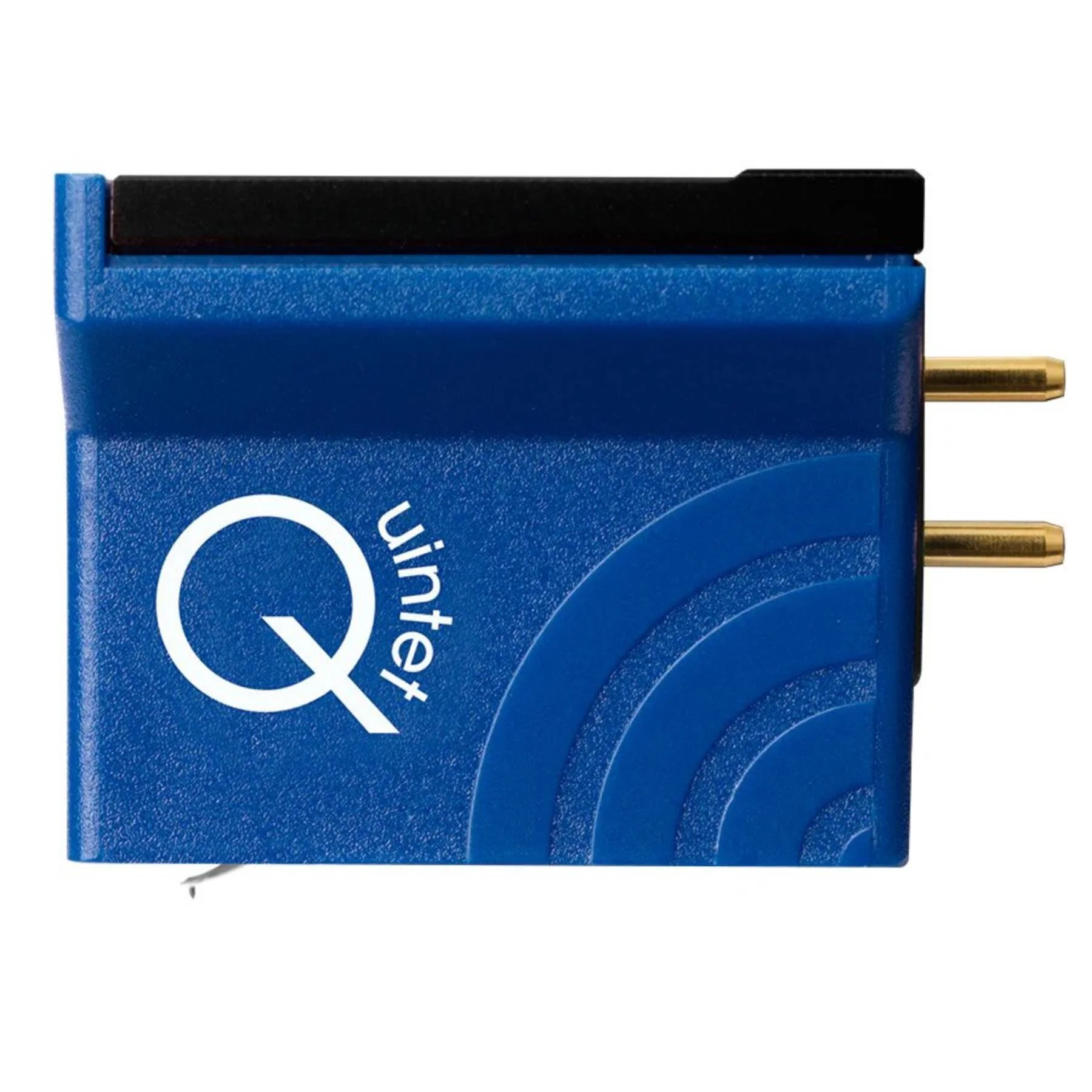

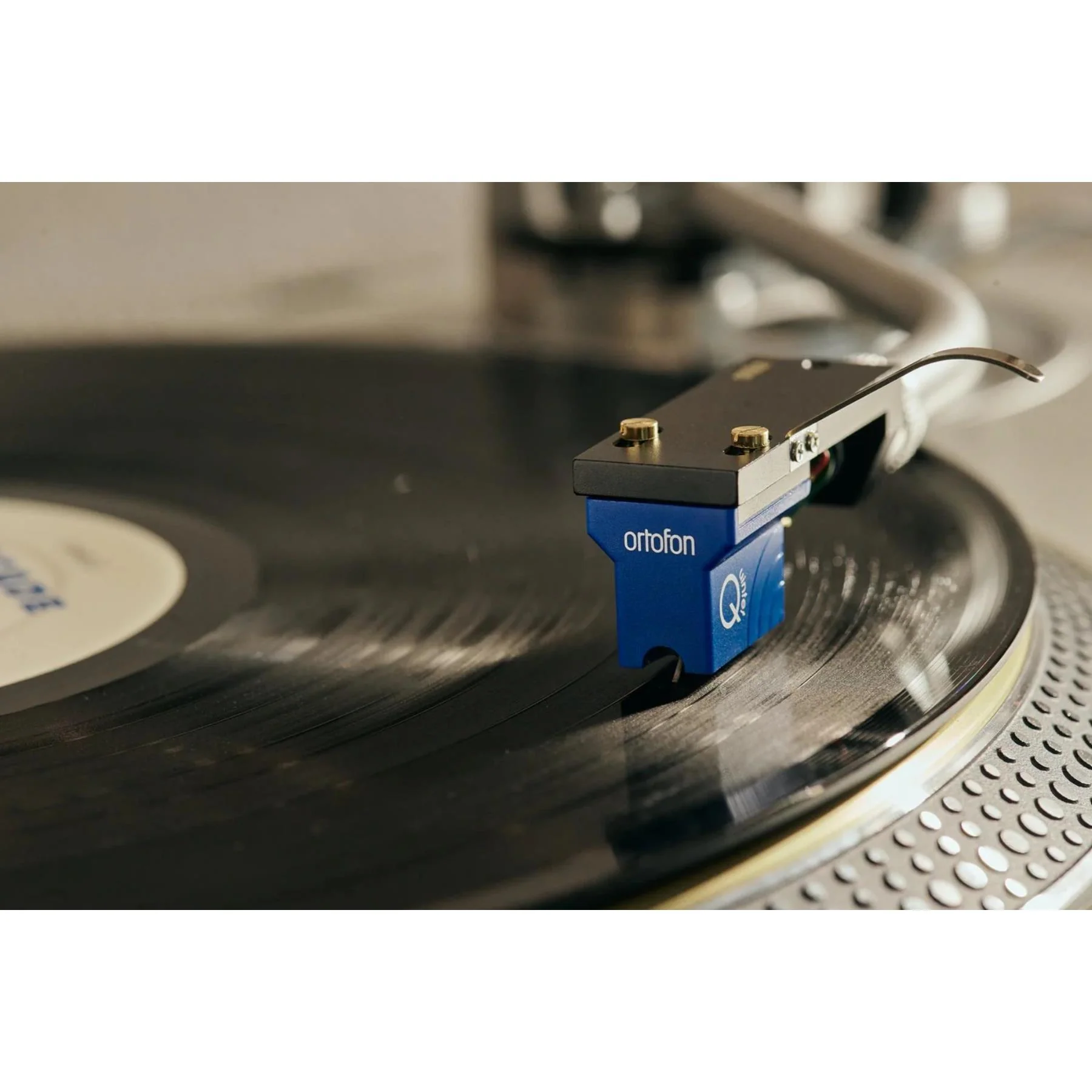

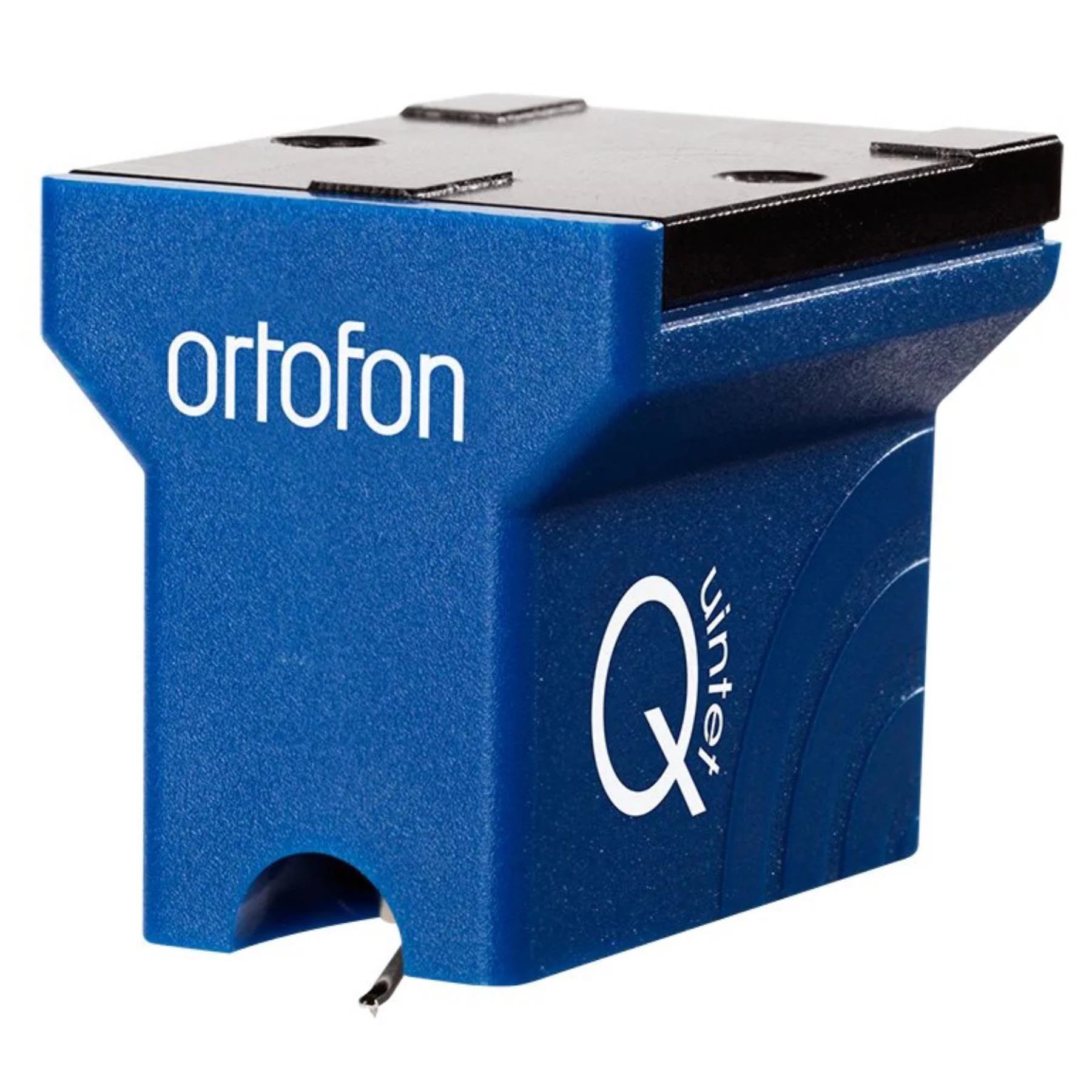

Ortofon MC Quintet Blue Moving Coil Cartridge - Enhanced Sound Experience for Audiophiles

Ortofon MC Quintet Blue Moving Coil Cartridge. Engineered for precision and fidelity, the Quintet Blue delivers a seamless and immersive soundstage, making it the perfect choice for discerning audiophiles.

Ortofon MC Quintet Blue Key Features:

• Smooth Reproduction: Experience smooth and nuanced sound reproduction, with a sound image that offers enhanced depth and detail compared to other models.
• Nude Elliptical Diamond: Equipped with a precision-crafted Nude Elliptical diamond mounted on an aluminum cantilever, the Quintet Blue brings out the best in your music, offering exceptional clarity and definition.
• Enhanced Detail and Resolution: Enjoy an even greater level of detail and resolution, thanks to the Quintet Blue's advanced design that pays homage to every element of the music.
• Durable Construction: Crafted with a special PC thermoplastic material, the cartridge body is lightweight yet durable, providing a scratch-resistant surface for years of reliable performance.
• Optimal Output: Neodymium magnets ensure optimal output, while low internal impedance makes the cartridge less sensitive to load, ensuring compatibility with a wide range of preamps and transformers.

The Quintet series from Ortofon represents the pinnacle of analog sound quality, with a legacy of over 70 years of excellence. Designed for easy installation and compatibility with most tonearms, the Quintet Blue is the perfect choice for audiophiles looking to elevate their listening experience.

Specifications:

• Channel Balance at 1 kHz: < 1.5 dB
• Output Voltage at 1 kHz, 5cm/sec: 0.5 mV
• Channel Separation at 1 kHz: > 21 dB
• Channel Separation at 15 kHz: > 14 dB
• Frequency Response: 20 Hz - 20 kHz (+/- 2.5 dB)
• Tracking Ability at 315Hz at Recommended Tracking Force: 70 µm
• Compliance, Dynamic, Lateral: 15 µm/mN
• Stylus Type: Nude Elliptical
• Stylus Tip Radius: r/R 8/18 µm
• Tracking Force Range: 2.1-2.5 g (Recommended: 2.3 g)
• Tracking Angle: 20°
• Internal Impedance, DC Resistance: 7 Ohm
• Recommended Load Impedance: > 20 Ohm
• Coil Wire Material: Pure 4-nines Silver
• Cartridge Body Material: PC/Alu
• Cartridge Colour: Blue
• Cartridge Weight: 9 g

Upgrade your audio setup with the Ortofon MC Quintet Blue Moving Coil Cartridge and experience music like never before.

Ortofon Quintet Downloads

Ortofon Quintet User Guide
Ortofon Quintet Brochure/Data Sheet
