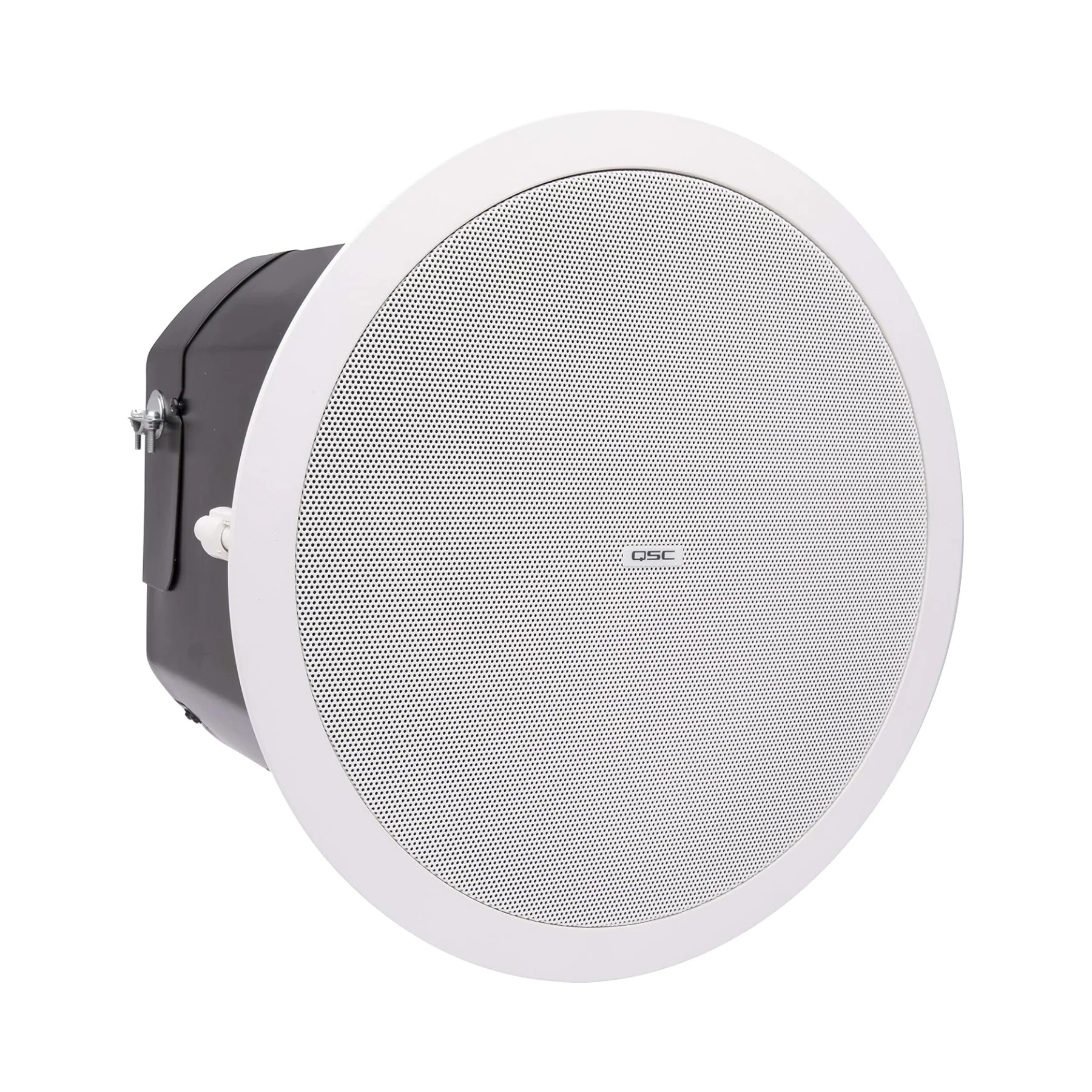

AcousticDesign™ Series AD-C.SUB - 6.5-inch Dual Voice Coil, Small Format Ceiling Subwoofer

The AD-C.SUB is part of the AcousticDesign™ Series SUB/SAT loudspeaker solution, which is ideally suited for background music applications that require depth and clarity even at lower volume settings. The AcousticDesign Series SUB/SAT loudspeakers are specifically designed to be mix-and-match capable; meaning any combination of satellites may be paired with any subwoofer in the AD Series SUB/SAT line.

Key Features:

• Consistent tonal characteristics across the entire AcousticDesign Series for surface, ceiling, and pendant applications
• Refined depth and clarity even at low volume settings
• Mix-and-match capable, any subwoofer with any satellite in the AD Series SUB/SAT line
• Dual voice-coil for improved thermal dissipation and higher output
• Low-saturation and low-loss 70 / 100 V transformers in mono mode
• Snap-fit magnetic grill
• 4x built-in high-pass filtered outputs
• Locking 4-pole Euroblock connectors
• Removable conduit cover plate
• Blemish-free removable logo
• 4x double stepped, long travel dog-ear blind mount system
• Intrinsic Correction™ voicings available via MP-M Series mixers and the Q-SYS Platform, including CXD-Q Series amplifiers
• Available in black (RAL 9011) or white (RAL 9010)
•  UL1480 and UL2043 certified

Specification

• LF transducer: 6.5-inch (165 mm) dual voice-coil weather treated paper cone woofer
• HF transducer: N/A
• Effective frequency range: 45 Hz – 150 Hz
• Rated noise power / voltage: 100 W / 20 V (rms)
• Sensitivity [dB] (rated @ 1 W, 1 m): 86
• Coverage (‐6 dB): 250°
• Directivity factor: 1.5
• Directivity index [dB]: 1.8
• Maximum SPL [dB] (continuous / program / peak): 105 / 108 / 111
• Recommended amplifier :100 W
• Transformer taps / impedance: Bypass: 4 Ω

                                                                100 W (70 V); NA (100 V) Tap: 50 Ω

                                                                50 W (70 V); 100 W (100 V) Tap: 100 Ω

                                                                25 W (70 V); 50 W (100 V) Tap: 200 Ω

                                                                12.5 W (70 V); 25 W (100 V) Tap: 400 Ω

• Connectors: Mono input: 4-pole Euroblock with thru output
                        Hi-pass mono output: 2x 4-pole Euroblock for 4x satellites
• Enclosure material: ABS baffle on powder coated steel back can
• Grill material: Powder coated steel
• Ingress protection: IP-34
• Operating environment: Designed for indoor use
• Operating temperature range: -4 to 122° F (-20 to 50° C)
• Net weight: 19.2 lb (8.7 kg)
• Cutout dimension: Ø 12 in (Ø 305 mm)
• Product dimensions: (Ø x H) Ø 13.4 x 10.4 inch (Ø 340 x 263 mm)
• Shipping weight: 11.9 lb / 26.2 kg
• Shipping dimensions: (H x W x D) 21 x 21 x 15 in (533 x 533 x 381 mm)
• Included accessories: C-ring and tile rails, rail screws, 3x Euroblock connector, cut-out template, grill
• Safety agency:
  UL1480A, UL2043, NFPA90, NFPA70 suitable for use in air handling spaces. Transformer UL registered per UL1876, ROHS, CE compliant.
  Baffle meets UL94-V0 and UL94-5VB flamibility rating; in accordance with IEC60849 / EN60849 systems.
• Optional accessories: AD-MR8 (pre-install mud ring)
