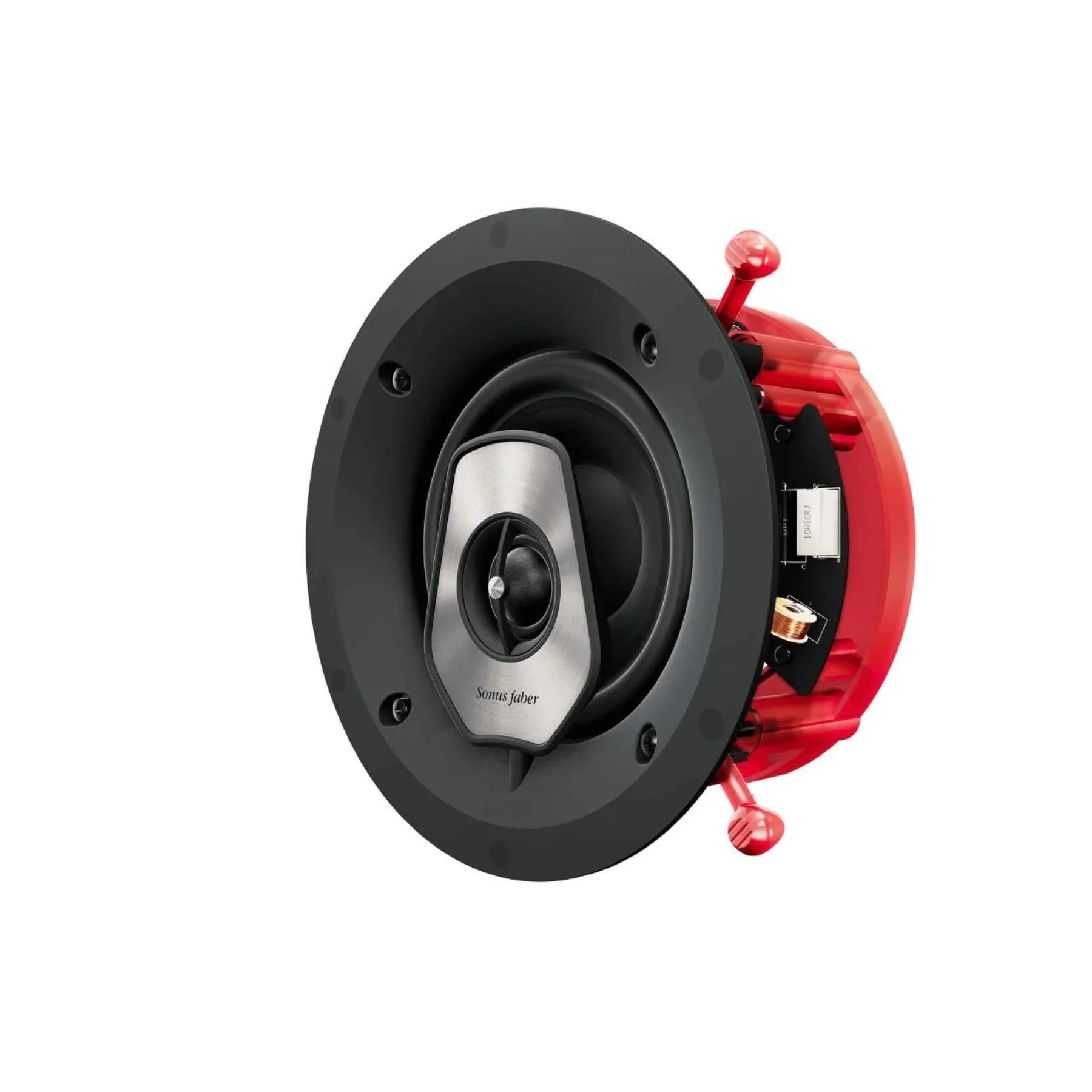

Sonus faber Palladio PC-562 2-Way In-Ceiling Speaker
Sonus faber Palladio PC-562 2-Way In-Ceiling Speaker
Transform your living space with the Sonus faber Palladio PC-562 2-Way In-Ceiling Speaker. Designed for easy installation and customization, this speaker delivers high-quality sound while seamlessly blending into your home decor.
Sonus faber PC-562 Key Features:
- Easy Installation: Equipped with a swing-out dogs fixing system, installation on plasterboard is quick and hassle-free.
- Discreet Design: Featuring a magnetic, edgeless metal grille that can be painted to match your ceiling, the PC-562 ensures a discreet integration into any room.
- Classic Elegance: With design elements inspired by the Sonetto Collection, including satin aluminum trim and the iconic āVoice of Sonus faberā tweeter, this speaker exudes timeless elegance.
- Family Feeling: Directly referencing the Sonetto Collection, the PC-562 shares materials, electroacoustic projects, and design aesthetics.
- Custom Diaphragm: The mid-woofer's custom diaphragm is crafted from natural fiber and cellulose pulp for a rich, natural sound.
- High-Performance Tweeter: Equipped with a DADTM (Damped Apex Dome) silk dome tweeter for pristine highs and clarity.
- Paracross TopologyTM: The anti-resonant design of the crossover network ensures better sound definition and purity.
Sonus faber PC-562 Specifications:
- Loudspeaker System: 2-way In-ceiling system, Infinite baffle
- Tweeter: DADTM Driver Ć 29 mm (1.1 in)
- Midwoofer: Ć 165 mm (6.5 in)
- Crossover Frequency: PARACROSS TOPOLOGYTM at 3,000 Hz
- Frequency Response: 50 Hz ā 25,000 Hz
- Sensitivity: 90 dB SPL (2.83 VRMS @ 1M)
- Nominal Impedance: 4 ohm
- Coverage Angle: Ā± 60Ā° H - Ā± 60Ā° V (1 kHz, @-6 dB)
- Suggested Amplifier Power Output: 40 W ā 200 W Undistorted signal
- Frame Outer Diameter: Ć 234 mm (9.2 in)
- Cut Out Diameter: Ć 208 mm (8.1 in)
- Depth Behind Surface: 115 mm (4.5 in)
- Protrusion: 10 mm (0.4 in)
- Net Weight: 3.1 Kg (6.8 lb)
Included in the Box:

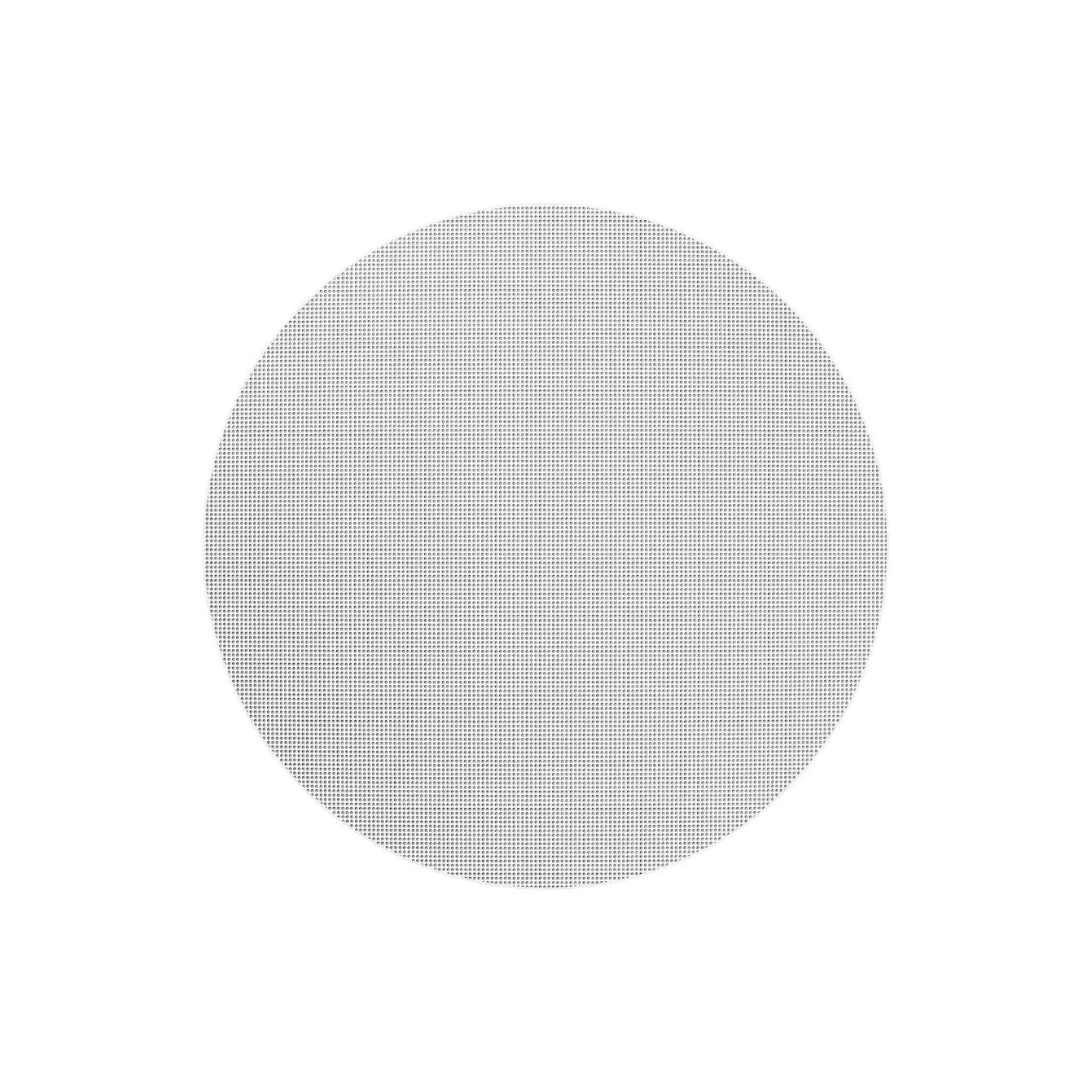

- Bezel-Free round magnetic grille
Additional Fittings:

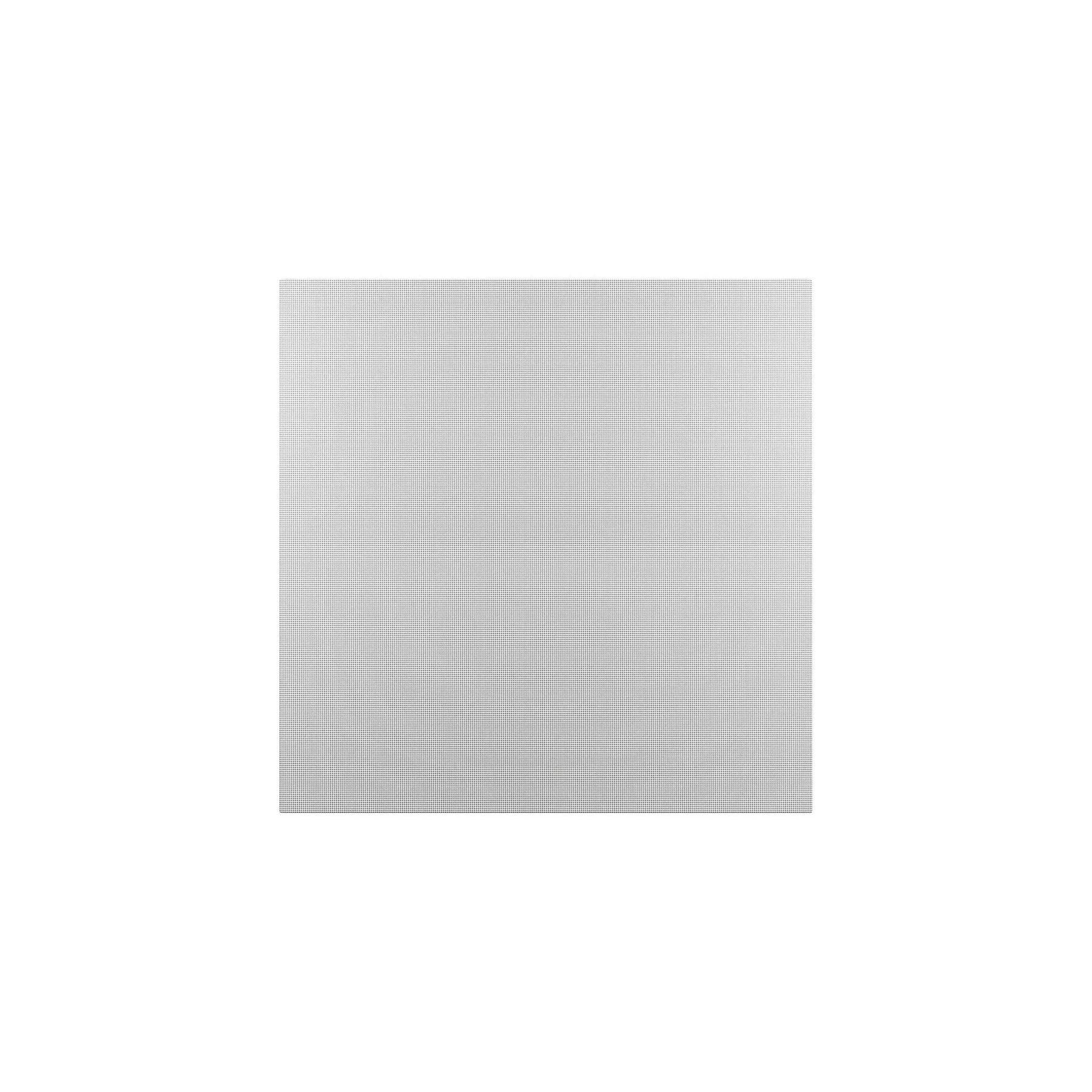

- Bezel-Free square magnetic grille
- Pre-mount kit
Enhance your home theater experience with the Sonus faber Palladio PC-562 2-Way In-Ceiling Speaker. Immerse yourself in crystal-clear sound and elevate your space with timeless elegance.
Sonus faber PC-562 Specification Sheet
Sonus faber PC-562 Cutout Template
