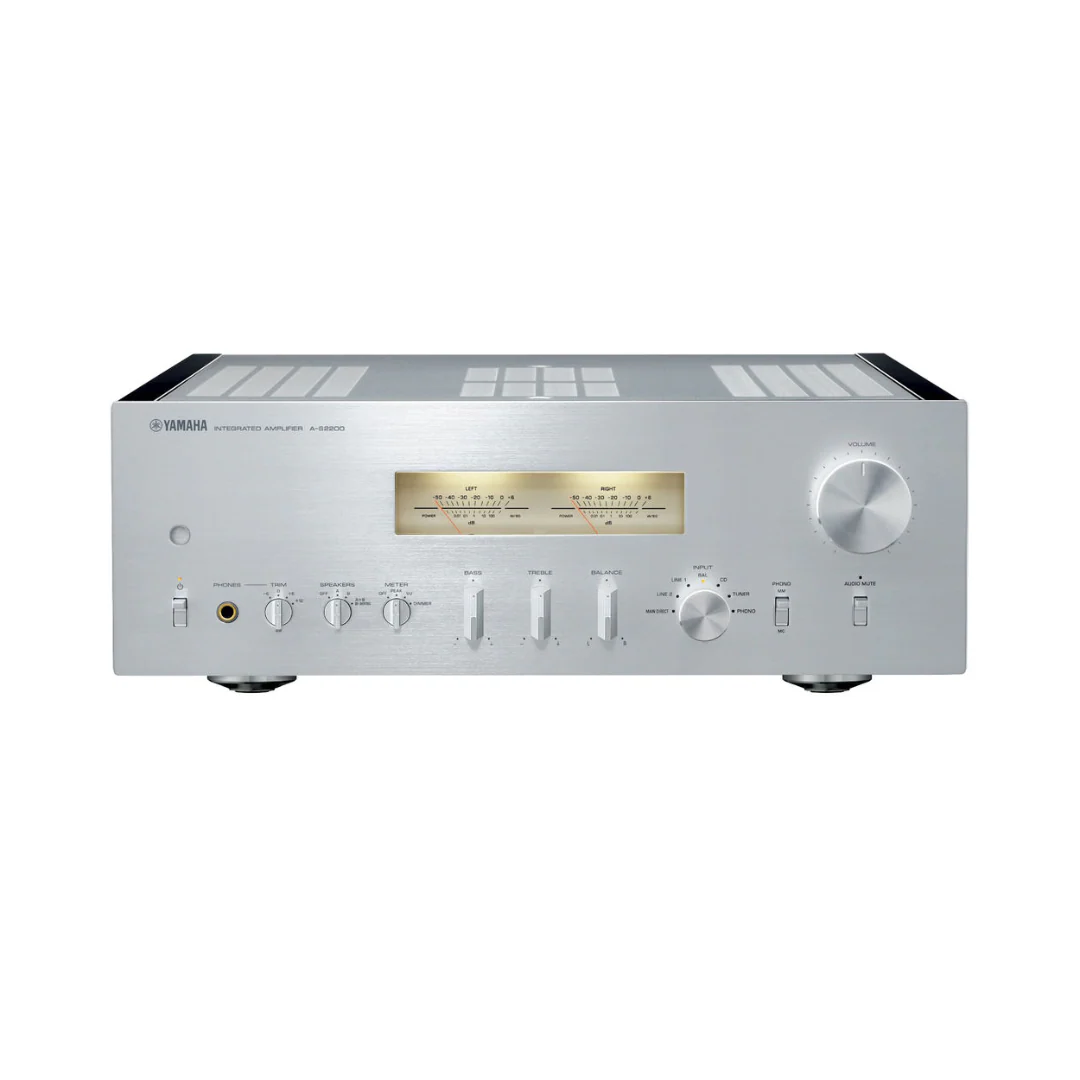

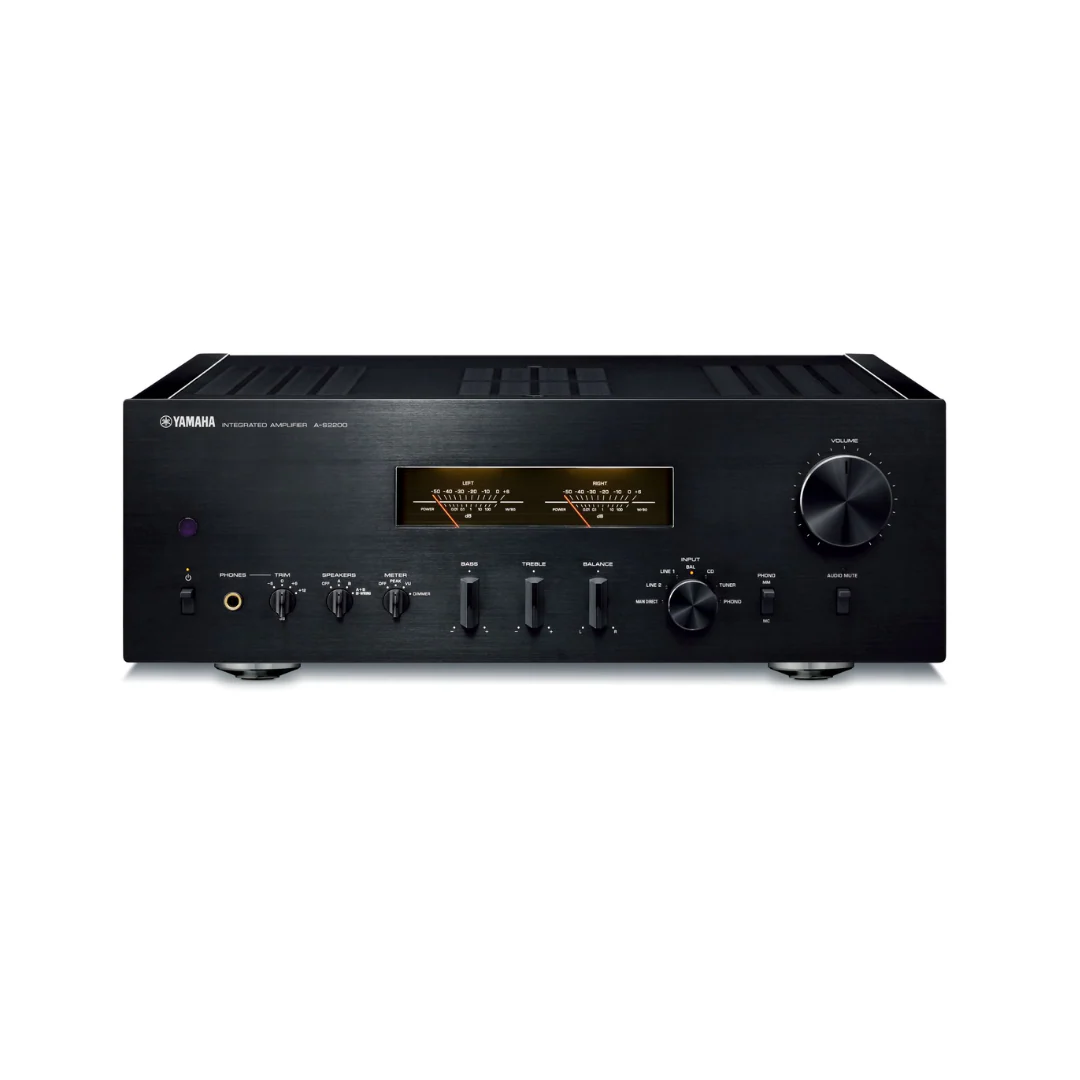

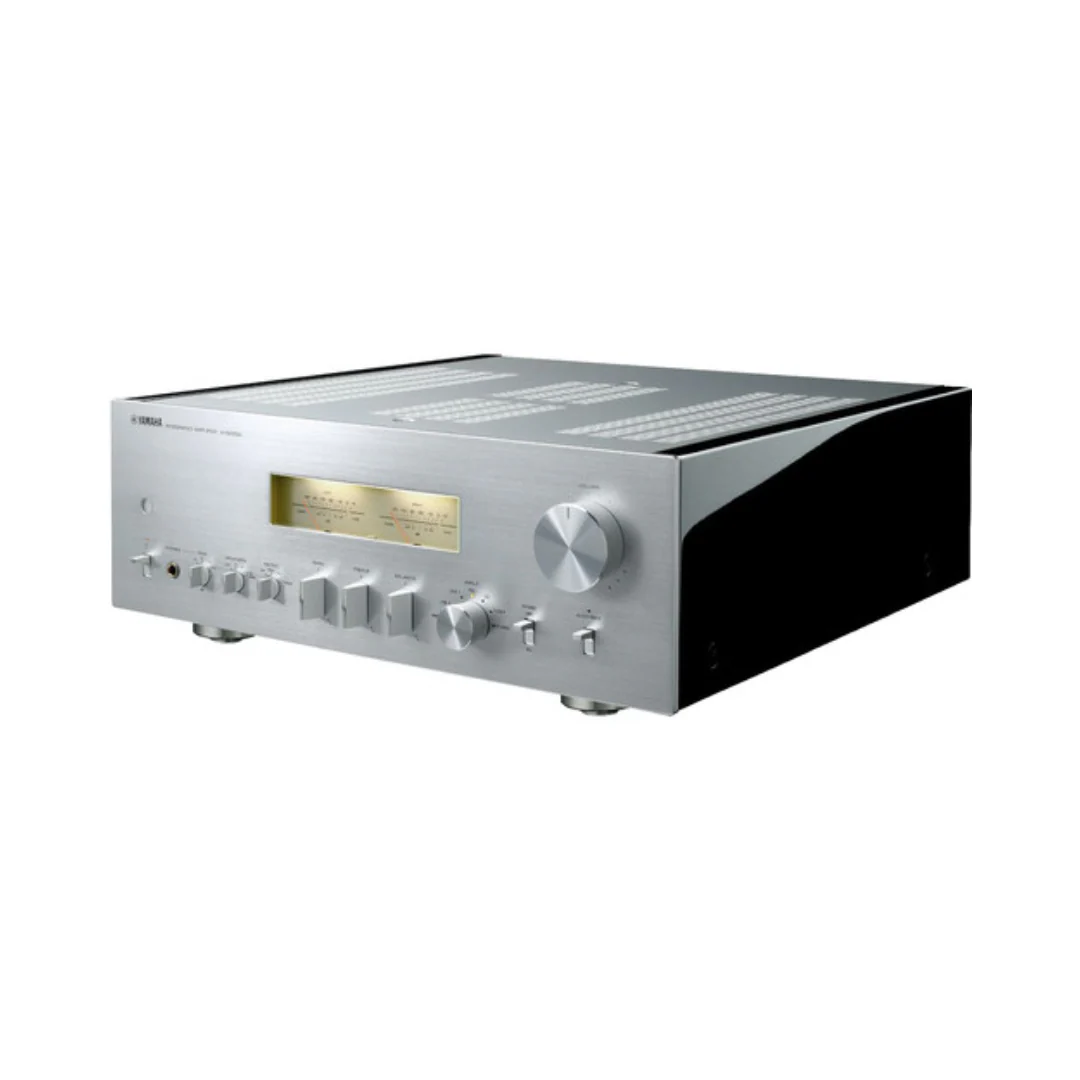

Yamaha A-S2200 Integrated Amplifier

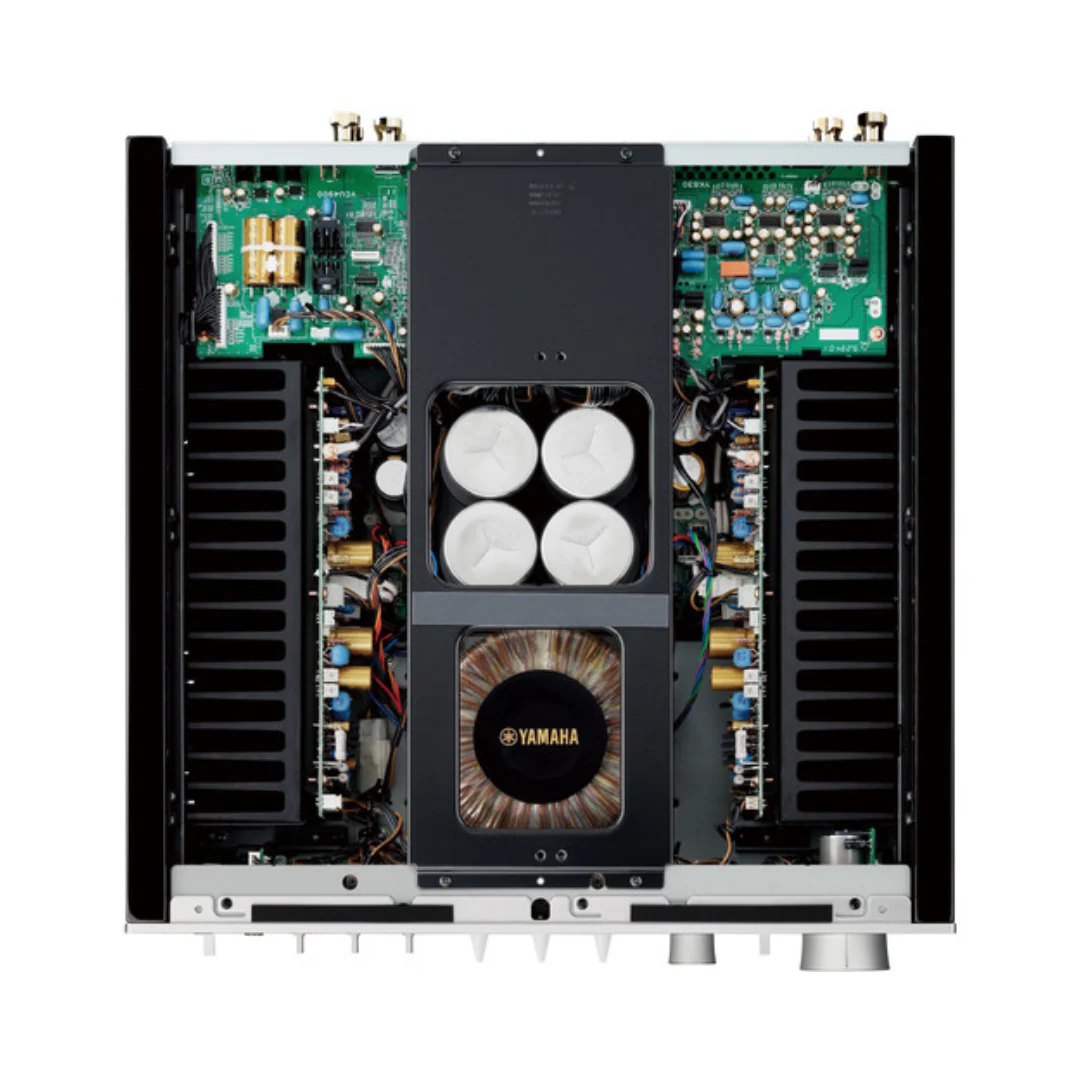

The A-S2200 inherits its big brother's prowess, delivering an authentic, powerful, yet elegantly emotional Hi-Fi experience. With a fully balanced circuit design and a large toroidal power transformer, it embodies absolute musicality in a luxuriously beautiful instrument.

EMOTION

Embedded in Yamaha's DNA is an intimate understanding of artists' emotional stories, translating into a profound musical experience for listeners. The toroidal transformer preserves the emotional energy of the music, while the gorgeous level meters visually capture its dynamics and pulse.

OPENNESS

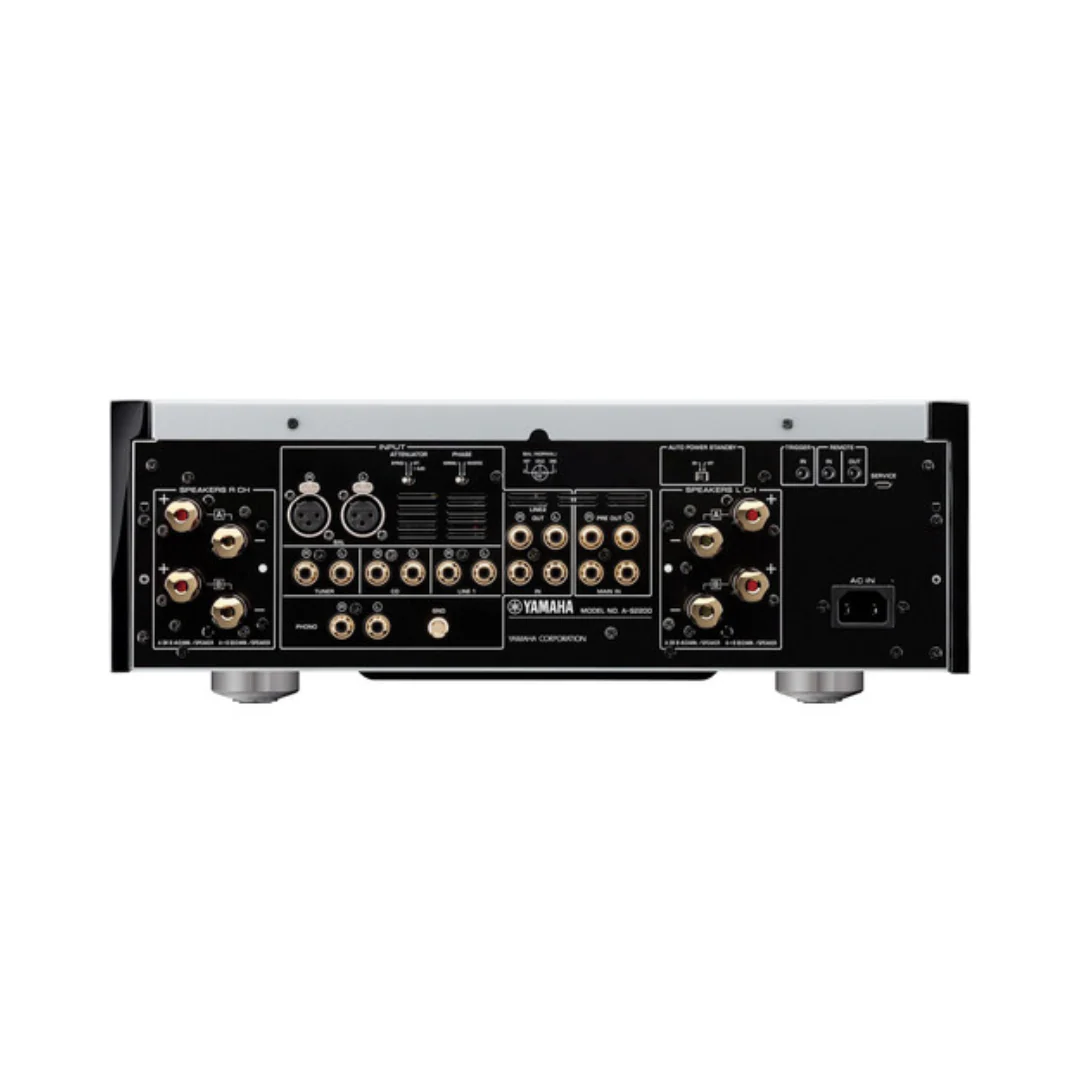

True Hi-Fi transports listeners into the heart of the music, fostering an immersive experience. Thick wires for ground connection and original speaker terminals create a naturally open sound stage, allowing the music to take center stage.

GROOVE

Music's rhythm and groove resonate deeply with listeners, evoking visceral emotions. The Mechanical Ground Concept ensures rigidity and reduces vibration, while chrome-plated brass feet enhance amplifier stability.

Experience the A-S2200: a pinnacle of Hi-Fi sophistication.

Yamaha A-S2200 Integrated Amplifier Specs

• Rated Output Power: 90 W + 90 W (8 ohms), 150 W + 150 W (4 ohms)
• Damping Factor: ≥ 250 (1 kHz, 8 ohms)
• Frequency Response: +0 / -3 dB (5 Hz-100 kHz), +0 / -0.3 dB (20 Hz-20 kHz)
• Total Harmonic Distortion: 0.02% (PHONO MC→LINE2 OUT), 0.005% (PHONO→LINE2 OUT), 0.035% (CD, etc./BAL→SP OUT)
• Signal-to-Noise Ratio: PHONO MC: 90 dB, PHONO MM: 96 dB, CD, etc.: 110 dB, BAL: 114 dB
• Input Sensitivity: PHONO MC: 150 uVrms/50 ohms, PHONO MM: 3.5 mVrms/47 kohms, CD, etc.: 200 mVrms/47 kohms, MAIN IN: 1 Vrms/47 kohms, BAL: 200 mVrms/100 kohms
• Transformer: 625VA (Toroidal)
• Dimensions (W x H x D): 17-1/8" x 6-1/8" x 18-1/4"
• Weight: 50.0 lbs
