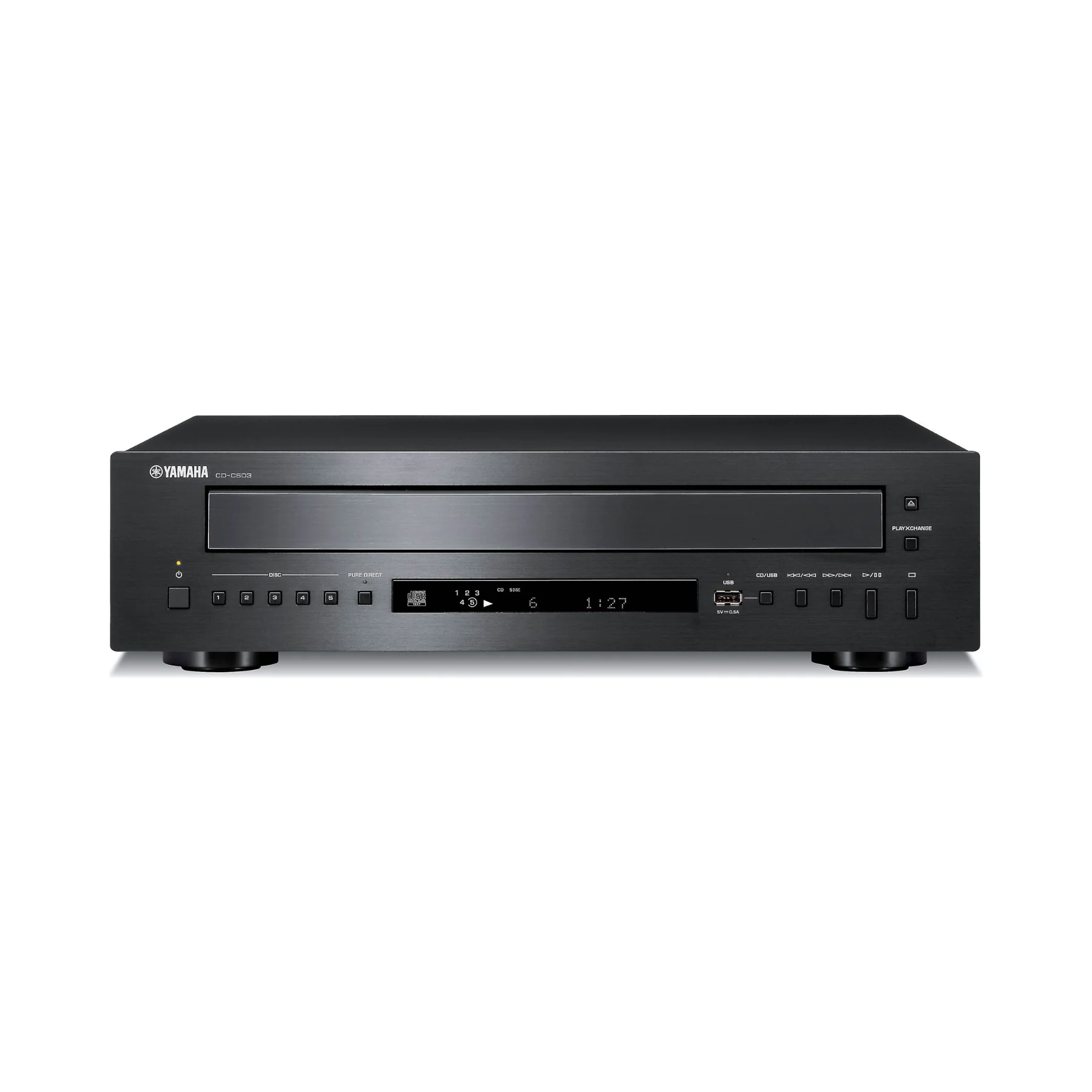

Yamaha CD-C603 CD Player

The Yamaha CD-C603 inherits our Hi-Fi technology cultivated over many years, delivering dynamic and clear sound from up to 5 CDs or music files stored on USB.

Key Features:

• High-Quality Sound: Short signal paths, sophisticated circuitry, intelligent digital servo, and a laser pickup floating mechanism ensure superior sound quality.
• Convenient CD Changing: The fully-opening tray allows you to change 5 discs at a time, while PlayXChange lets you change 4 discs while the 5th one continues to play.
• Pure Direct Mode: Activate Pure Direct Mode to minimize noise interference by shutting down the digital audio output and turning off the display, ensuring the highest sound quality from the analog audio output.
• Versatile Playback: Supports MP3, WMA, AAC, WAV, and FLAC music files via a front-panel USB port, with playback up to 96kHz/24bit WAV/FLAC.
• Multiple Outputs: Equipped with RCA and Optical outputs for versatile connectivity.
• Playback Functions: Enjoy Random, Repeat, Programmed, and other convenient playback functions.

Experience Pure Sound Quality:

The CD-C603 offers Pure Direct, a feature popular in Yamaha amplifiers and receivers. By pressing the button on the front panel or remote control, you can shut down the digital audio output and turn off the display, achieving the lowest possible noise interference and the highest sound quality for analog audio output.

Convenient CD Changing:

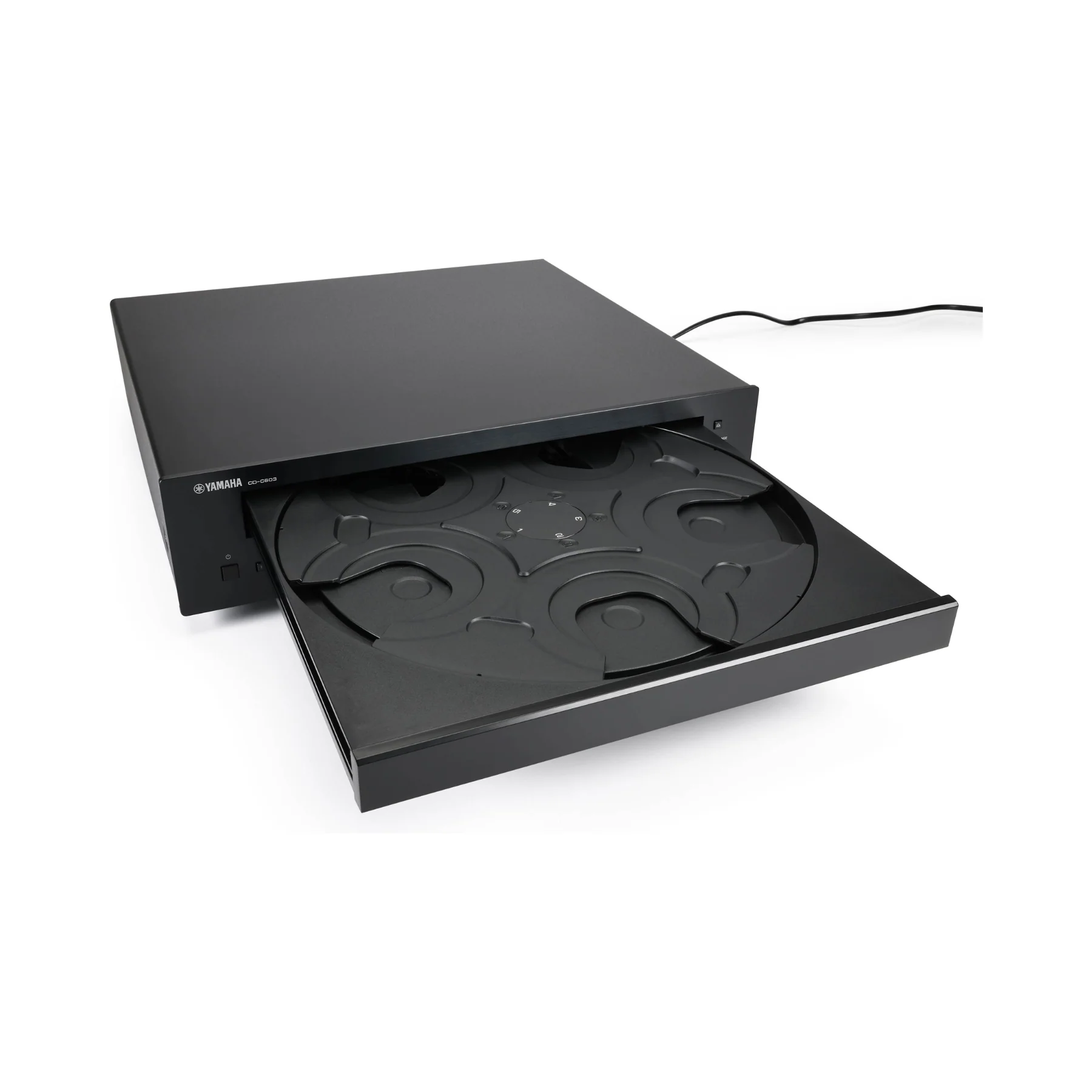

With PlayXChange, you can change four CDs while the fifth keeps playing, ensuring uninterrupted music. The fully-opening disc tray allows for easy changing of up to 5 discs simultaneously.

High-Quality Sound:

Thanks to its sophisticated internal layout, the CD-C603 delivers music with dynamic and clear sound. It also supports high-quality playback of music files (MP3, WMA, AAC, WAV, FLAC) stored on USB memory devices via a front-panel USB port.

CD-C603 Specs

• Compatible Format: MP3, WMA, AAC, WAV, FLAC, up to 96kHz/ 24bit
• Disc Compatibility: CD, CD-R, CD-RW
• Signal to Noise Ratio: 105dB
• Dynamic Range: 96dB
• Harmonic Distortion: 0.003%
• Frequency Respone: CD/USB: Fs 48 kHz 2 Hz - 22 kHz, Fs 96 kHz 2 Hz - 44 kHz -3 dB
• PlayXchange: Yes

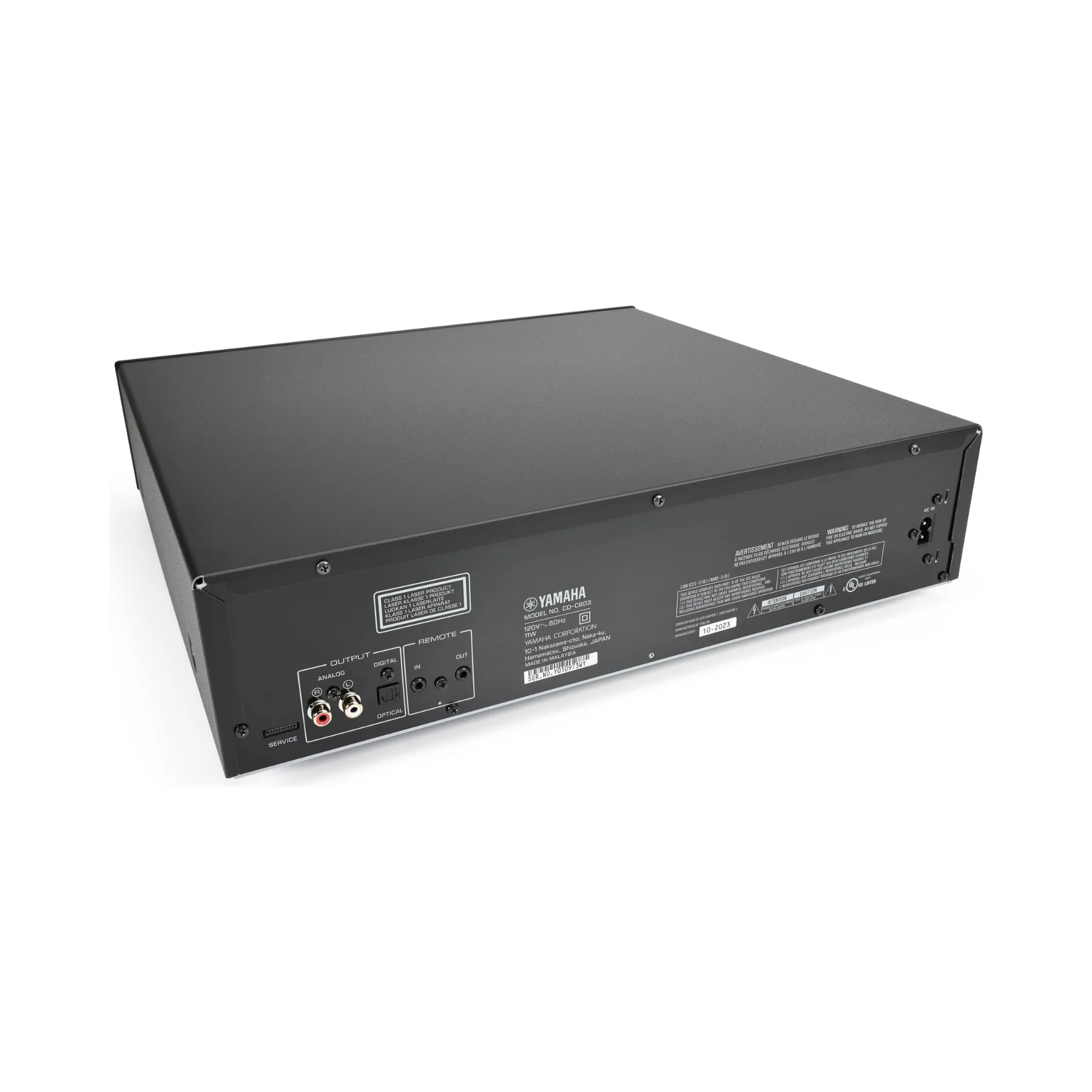

• Output: Unbalanced L/R (RCA), Optical
• Remote In/Out: Remote in x1 / Remote Out x1 (3.5mm)
• Dimensions (WxHxD): 17 1/8" x 4 5/8" x 16"
• Weight: 12.3lbs
